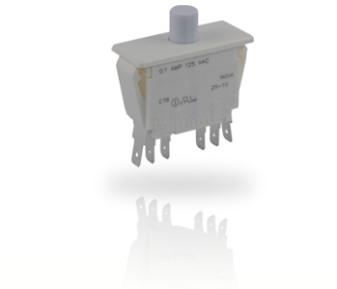

Switch Push Button

0E78-40A0

Switch Push Button N.O./N.C. DPDT Button 0.1A 125VAC Momentary Panel Mount Quick Connect

ZF Electronics

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Unconfirmed

• HTS

  8536.50.90.31

• Switch Function

  Momentary

• Pole Throw Configuration

  DPDT

• Actuator Style

  Button

• Switch Configuration

  N.O./N.C.

• Maximum Current Rating (A)

  0.1@125VAC

• Actuator Length (mm)

  18.04

• Mounting

  Panel Mount

• Termination Style

  Quick Connect

• Number of Terminals

  6

• Body Orientation

  Straight

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Product Length (mm)

  39.88

• Product Depth (mm)

  17.27

• Product Height (mm)

  49
