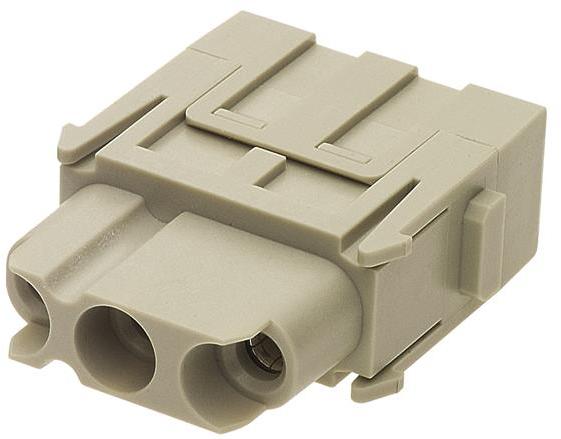

HARTING Technology Group09140032701Connector Rectangular
Conn Rectangular F 3 POS Crimp ST Bag
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| SVHC | Yes |
| SVHC Exceeds Threshold | Yes |
| Automotive | No |
| PPAP | No |
| Rectangular | |
| RCP | |
| 3 | |
| 1 | |
| Crimp | |
| Straight | |
| F | |
| 40 | |
| 690V | |
| 10000 | |
| -40 | |
| 125 | |
| 500 | |
| Yes | |
| Bag | |
| 30 | |
| 34.2 | |
| 43.7 | |
| 14.6 |
This 09140032701 discrete wire housing from Harting can house one or multiple wires and channels for both small electronic devices and larger power applications. This F connector has 3 F contacts. This is a 1-row connector. It has a maximum voltage rating of 690 V. It has a straight body orientation. It has a female type gender. This device has a maximum current rating of 40 A. 09140032701 is housed in polycarbonate. This rectangle connector has an operating temperature of -40 to 125 °C. Its wire is 8 AWG. This product is 34.2 mm long, 14.6 mm tall and 43.7 mm deep.
