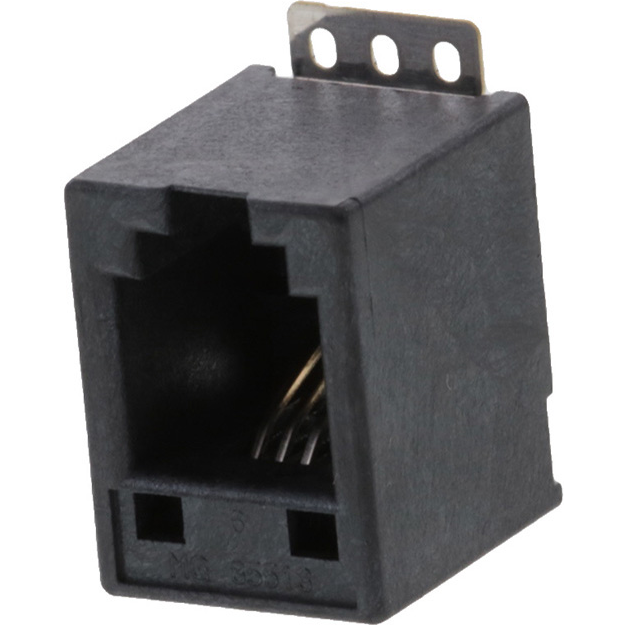

Molex0855135016Connector Telephone and Telecom
Conn RJ-11 F 4 POS 1.27mm Solder ST SMD 4 Terminal 1 Port Cat 3 T/R
Other Part Names : 855135016
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| SVHC | Yes |
| Automotive | No |
| PPAP | No |
| RJ-11 | |
| F | |
| 4 | |
| 4 | |
| 1 | |
| 4 | |
| Cat 3 | |
| Solder | |
| 1.27 | |
| Straight | |
| 1.5/Contact | |
| 125VDC | |
| 20 | |
| 2500 | |
| -40 | |
| 85 | |
| Tape and Reel | |
| Single | |
| 1.94 | |
| 11.18 | |
| 19.48 | |
| 12.7 | |
| Surface Mount |
This rj-11 0855135016 telephone and telecom connector from Molex is the perfect connector for high-power applications. This F connector's 4 contacts that are made out of brass and plated with gold over nickel. It has a straight body orientation. Its pitch is 1.27 mm. It has a female type gender. It has a maximum voltage rating of 125 VDC. This connector has a single port. This device has a maximum current rating of 1.5 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. It uses the solder termination method. 0855135016 is housed in black liquid crystal polymer. This product is 11.18 mm long, 12.7 mm tall and 15.08 mm deep. This part has an operating temperature of -40 to 85 °C.
