Blowers and Fans

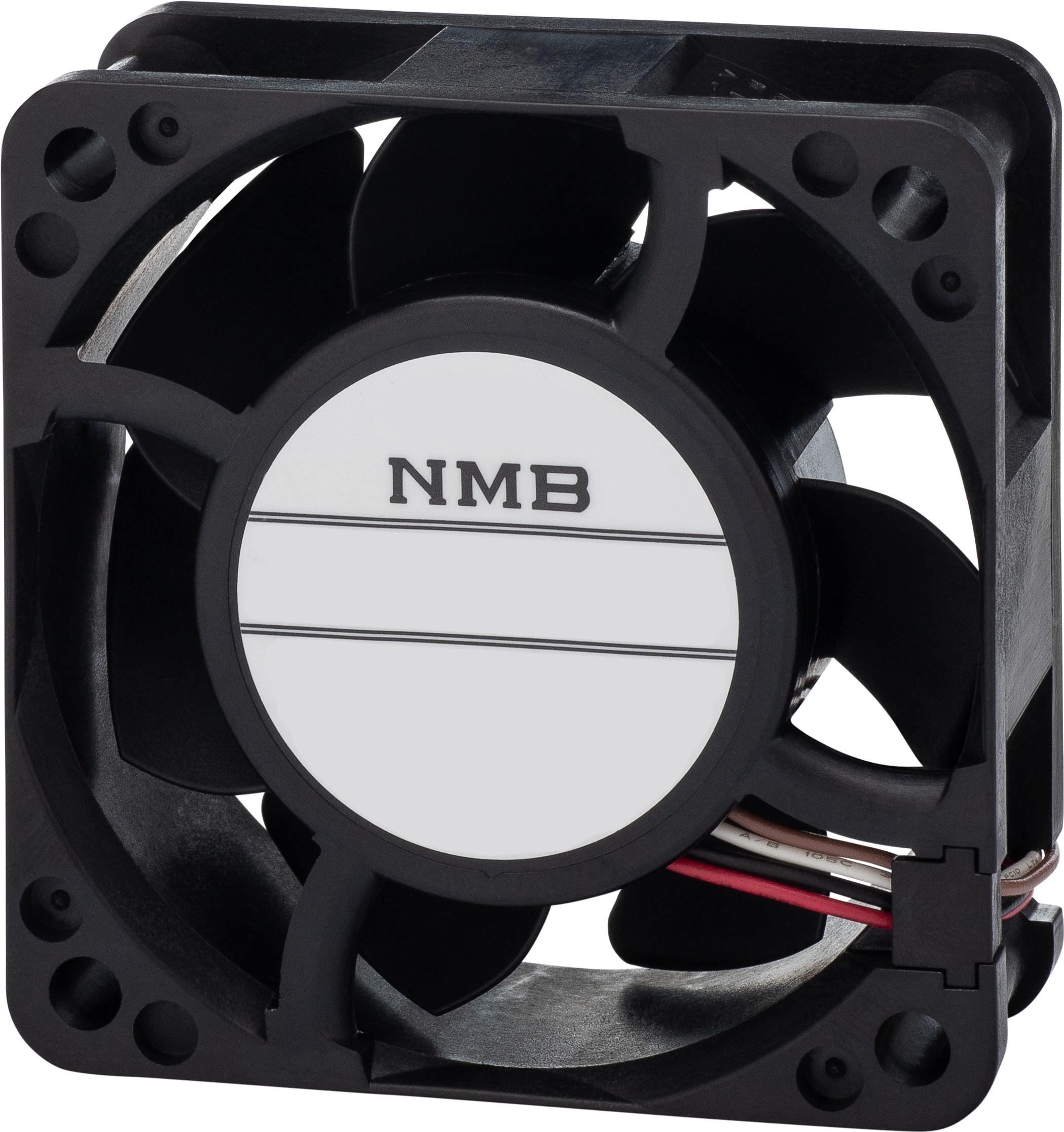

06025DA12RAU02

DC Fan Axial Ball Bearing 12V 7V to 13.2V 45.6CFM 52dB 60 X 60 X 25mm PWM Box

NMB Technologies Corporation

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8414.59.65.90

• Automotive

  Unknown

• PPAP

  Unknown

• Type

  Axial

• Category

  DC Fan

• Maximum Voltage Rating (V)

  12

• Input Voltage Range (V)

  7 to 13.2

• Line Current (A)

  0.67

• Power Rating (W)

  8.04

• Typical Speed (r/min)

  11000

• Maximum Airflow (CFM)

  45.6

• Maximum Static Pressure

  1.17inH2O

• Noise Level (dB)

  52

• Bearing Type

  Ball

• Shape

  Square

• Size (Metric) (mm)

  60 X 60 X 25

• Mounting

  Flange Mount

• Protection

  Auto Restart|Polarity

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  70

• Product Weight (g)

  95

• Product Length (Metric) (mm)

  60

• Product Depth (Metric) (mm)

  60

• Product Height (Metric) (mm)

  25

• Special Features

  PWM
