Cable Assembly Flat/Ribbon

0150200166

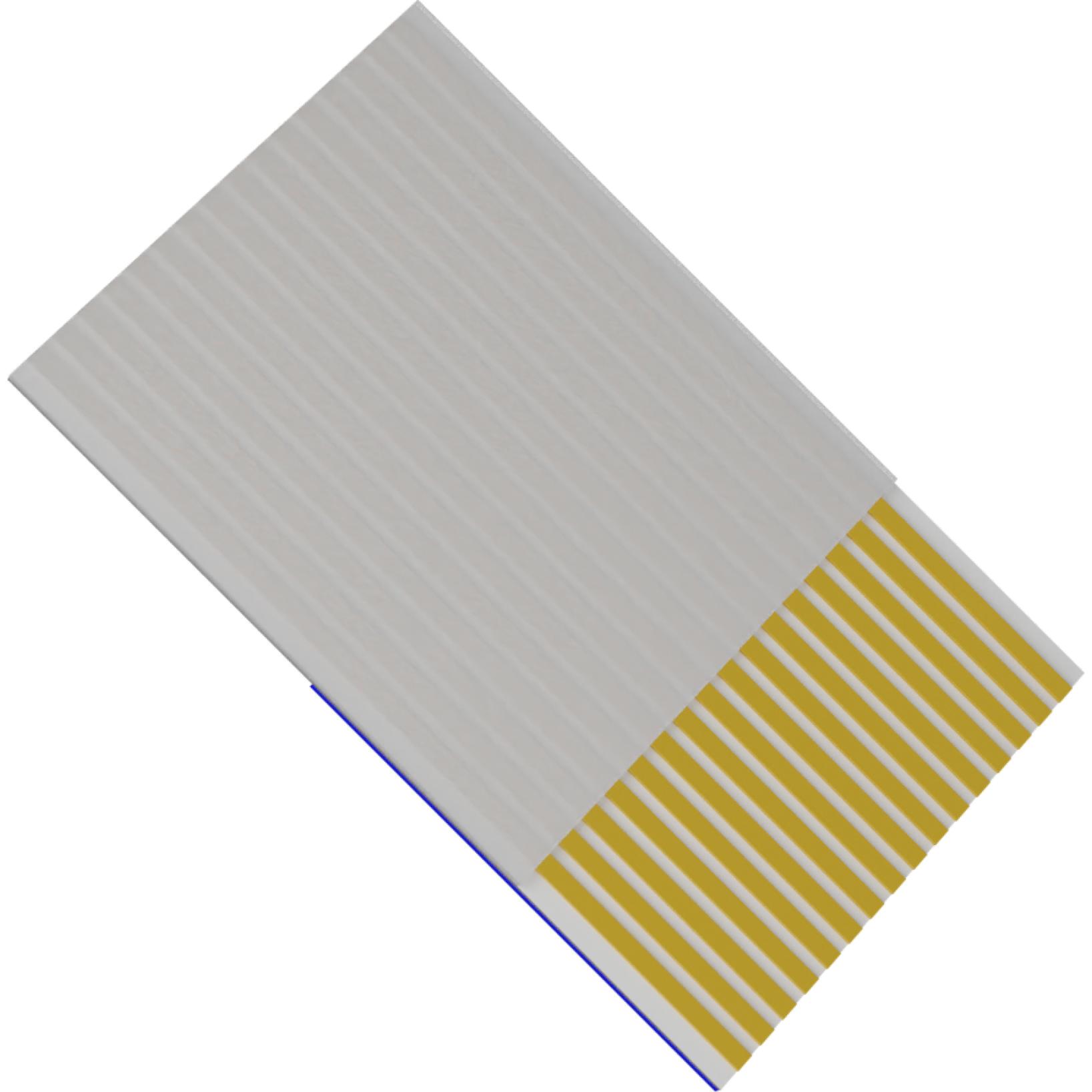

Cable Assembly 0.076m 33AWG 0.5mm 16 to 16 POS FFC Jumper to FFC Jumper M-M Premo-Flex™FFC Jumper Bag

Molex

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  EA

• Automotive

  No

• PPAP

  No

• Number of Contacts

  16 to 16

• Gender

  M-M

• Connector Type A

  FFC Jumper

• Connector Type B

  FFC Jumper

• Conductor Material

  Gold Plated Copper

• Wire Size (AWG)

  33

• Cable Pitch (mm)

  0.5

• Cable Length (m)

  0.076

• Insulation Thickness (mm)

  0.086

• Insulation Color

  White

• Maximum Voltage Rating

  60VAC

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  105

• Packaging

  Bag

• Product Depth (mm)

  8.5

• Tradename

  Premo-Flex™FFC Jumper

• Connector Orientation

  Straight to Straight

• Maximum Current Rating (A)

  0.5/Contact

• Contact Plating

  Gold
