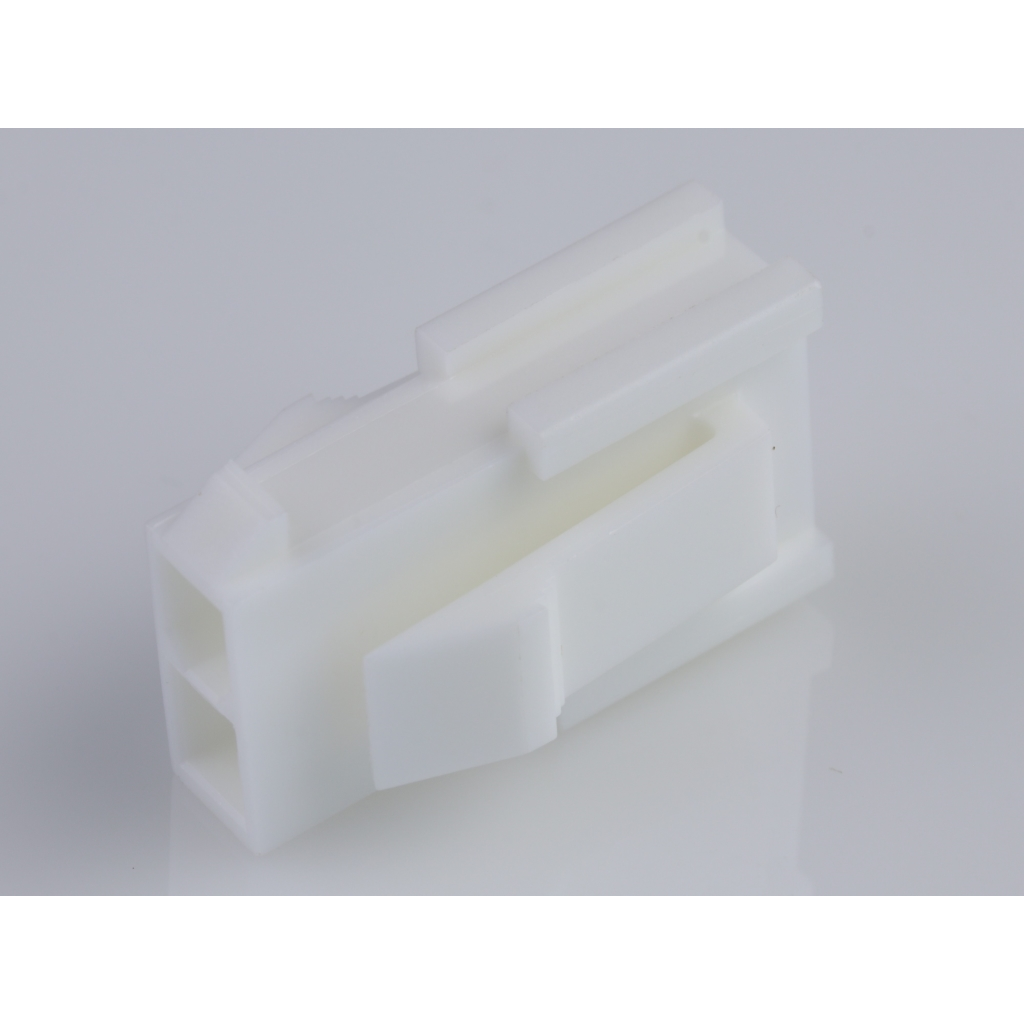

Molex0039012026Connector Discrete Wire Housing
Conn Housing PL 2Power POS 4.2mm Crimp ST Panel Mount Natural Mini-Fit Jr™ Bag
Other Part Names : 39012026
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Housing | |
| PL | |
| 2Power | |
| 2 | |
| Crimp | |
| 4.2 | |
| Straight | |
| 13/Contact | |
| 600VDC|600VAC | |
| 1000 | |
| -40 | |
| 105 | |
| Bag | |
| 1.28 | |
| 12 | |
| 23.9 | |
| Mini-Fit Jr™ | |
| Yes | |
| 4.2 | |
| Panel Mount |
This 0039012026 discrete wire housing from Molex is designed for both small electronic devices as well as larger power applications. This M connector has 2 M contacts. It has a male type gender. It has a straight body orientation. It has a maximum voltage rating of 600 VDC|600VAC. This is a 2-row connector. This device has a maximum current rating of 13 A/contact. Its wire is 18-24 AWG. 0039012026 is housed in natural nylon 6/6. This rectangle connector has an operating temperature of -40 to 105 °C. This product is 23.9 mm deep.
| EDA / CAD Models |
