커넥터 헤더 및 PCB 콘센트

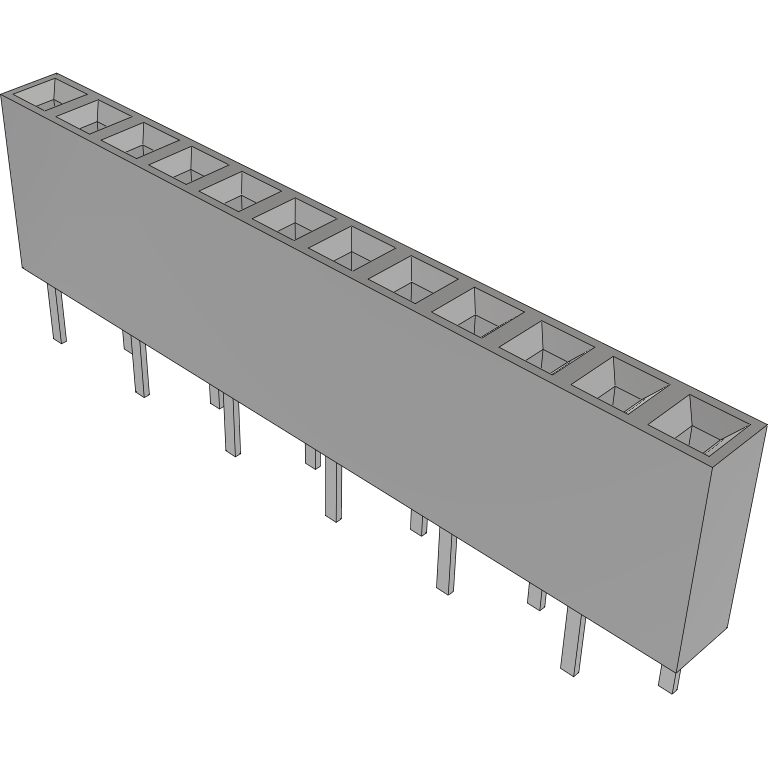

BCS-112-T-S-DE

Conn Socket Strip RCP 12 POS 2.54mm Solder ST Top Entry Thru-Hole TIGER CLAW™ Tube

Samtec

제품 기술 사양

• 유럽 연합 RoHS 명령어

  Compliant

• 미국수출통제분류ECCN 인코딩

  EAR99

• 친환경 무연

  Active

• 미국 세관 상품 코드

  EA

• Automotive

  No

• PPAP

  No

• Type

  Socket Strip

• Gender

  RCP

• Number of Contacts

  12

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Maximum Current Rating (A)

  5/Contact

• Maximum Voltage Rating

  700VDC|495VAC

• Maximum Contact Resistance (mOhm)

  10

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  2500

• Packaging

  Tube

• Product Length (mm)

  30.48

• Product Depth (mm)

  2.54

• Product Height (mm)

  7.37

• Tradename

  TIGER CLAW™

• Tail Length (mm)

  3.02

• Mounting

  Through Hole
