Reguladores Lineales

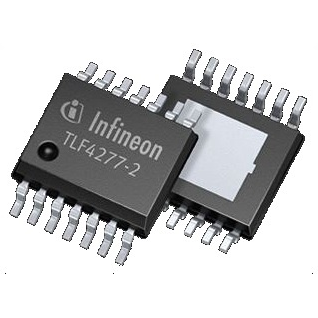

TLF42772ELXUMA2

LDO Regulator Pos 5V to 12V 0.3A Automotive AEC-Q100 14-Pin SSOP T/R

Infineon Technologies AG

Product Technical Specifications

• RoHS (Unión Europea)

  Compliant

• ECCN (Estados Unidos)

  EAR99

• Estatus de pieza

  Active

• Código HTS

  8542.39.00.90

• Automotive

  Yes

• PPAP

  Unknown

• Type

  LDO

• Number of Outputs

  1

• Polarity

  Positive

• Accuracy (%)

  ±2

• Output Type

  Adjustable

• Output Voltage (V)

  5 to 12

• Maximum Output Current (A)

  0.3

• Minimum Input Voltage (V)

  5

• Maximum Input Voltage (V)

  45

• Maximum Dropout Voltage @ Current (V)

  0.25@100mA|0.5@200mA

• Reference Voltage (V)

  1.19(Typ)

• Line Regulation

  20mV

• Load Regulation

  -5mV(Typ)

• Junction to Ambient

  132K/W(Typ)

• Junction to Case

  8K/W(Typ)

• Special Features

  Short Circuit Protection|Thermal Protection

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  150

• Supplier Temperature Grade

  Automotive

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  1.45

• Package Width

  3.9

• Package Length

  4.9

• PCB changed

  14

• Standard Package Name

  SO

• Supplier Package

  SSOP

• Pin Count

  14
