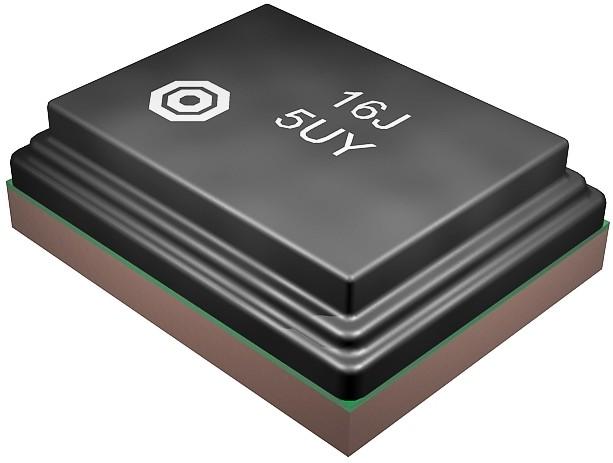

Filtri BAW

B39242B9634P810

BAW Filters 2442MHz 2.7dB 50Ohm+1.2nH 5 Terminal T/R

Qualcomm® RF front-end (RFFE) filters

Product Technical Specifications

• RoHS (Unione Europea)

  Compliant

• ECCN (Stati Uniti)

  5A991.g

• Codice HTS

  8542.39.00.20

• Automotive

  No

• PPAP

  No

• Typical Center Frequency (MHz)

  2442

• Load Impedance

  50Ohm+1.2nH

• Maximum Insertion Loss (dB)

  2.7

• Pass Band Ripple (dB)

  5.7

• Mounting

  Surface Mount

• Number of Terminals

  5

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  95

• Packaging

  Tape and Reel

• Product Length (mm)

  1.4

• Product Depth (mm)

  1.1

• Product Height (mm)

  0.45(Max)
