Cabezales del conector y receptáculos PCB

ZSS-107-09-L-D-1290

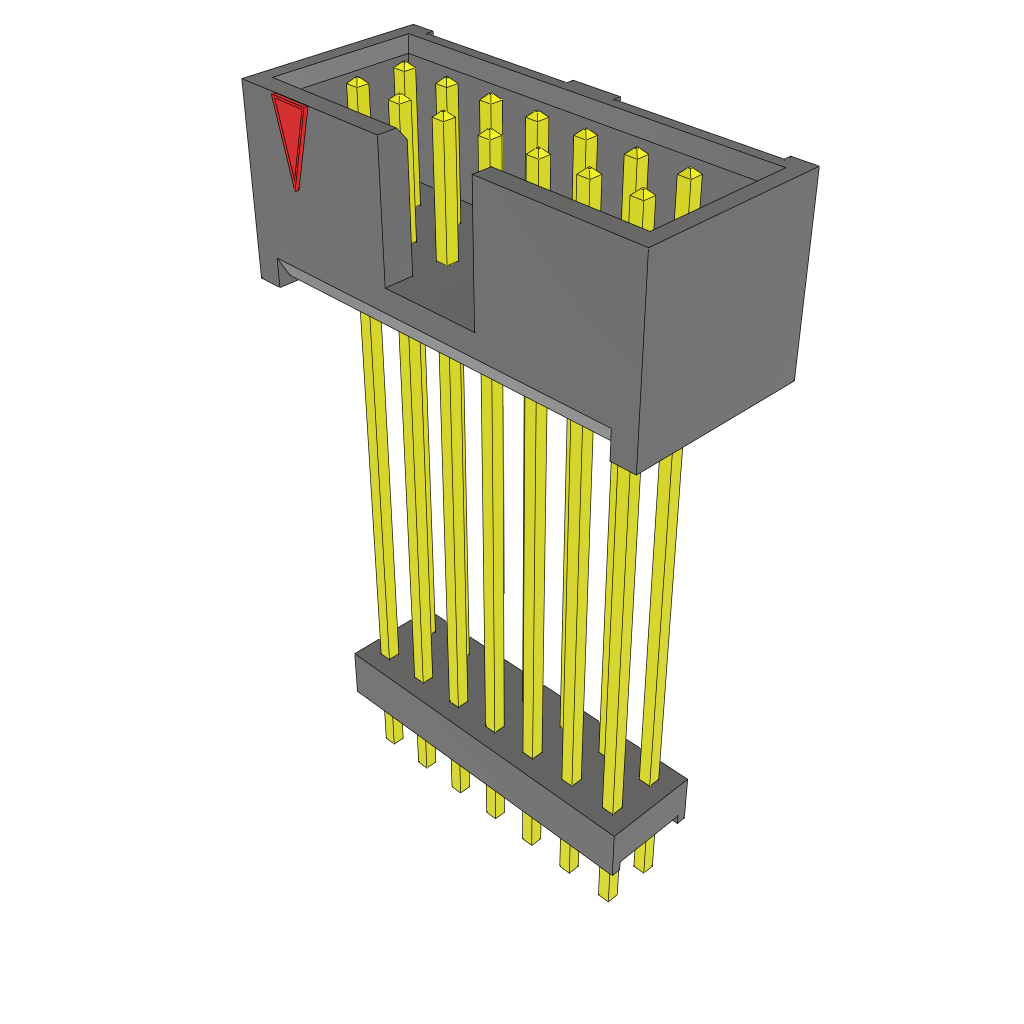

Conn Elevated Shrouded Header HDR 14 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Samtec

Especificaciones técnicas del producto

• RoHS (Unión Europea)

  Compliant

• ECCN (Estados Unidos)

  EAR99

• Estatus de pieza

  Active

• Código HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Elevated Shrouded Header

• Gender

  HDR

• Number of Contacts

  14

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Polarization Type

  Center Key/Center Slot

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  3

• Insulation Resistance (MOhm)

  5000

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Packaging

  Bulk

• Product Length (mm)

  21.59

• Product Depth (mm)

  9.27

• Product Height (mm)

  32.76

• Mounting

  Through Hole
