Conectores de borde de tarjeta

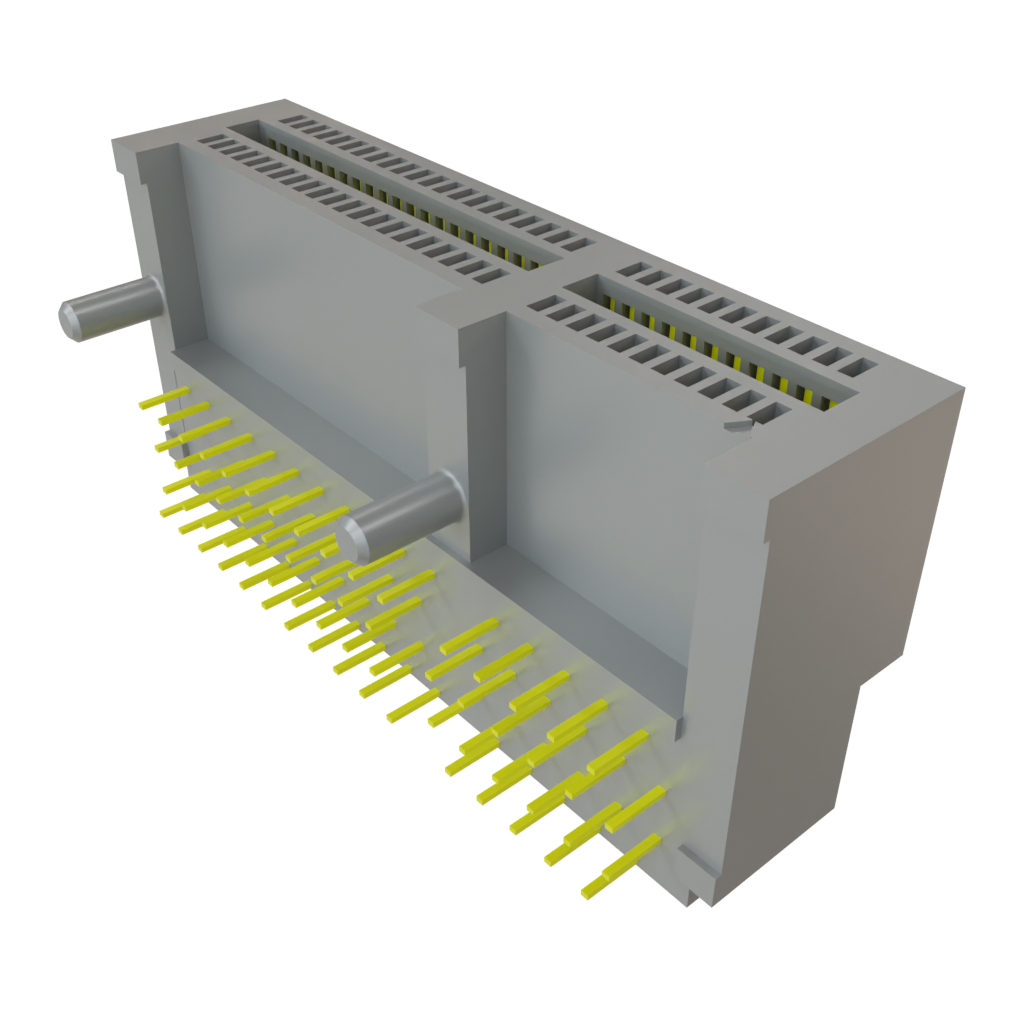

PCIE-064-02-F-D-RA

Conn Card Edge F 64 POS 1mm Solder RA Thru-Hole PCI Express® Tube

Samtec

Especificaciones técnicas del producto

• RoHS (Unión Europea)

  Compliant

• ECCN (Estados Unidos)

  EAR99

• Estatus de pieza

  Active

• Código HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Type

  Card Edge

• Gender

  F

• Card Type

  PCI Express

• Card Thickness (mm)

  1.57

• Number of Contacts

  64

• Number of Rows

  2

• Termination Method

  Solder

• Contact Type

  Cantilever Bellows

• Terminal Pitch (mm)

  1

• Body Orientation

  Right Angle

• Mounting Styles

  Alignment Pin

• Maximum Current Rating (A)

  2.4/Contact

• Maximum Voltage Rating

  215VAC/304VAC

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tube

• Product Length (mm)

  39

• Product Depth (mm)

  18.85

• Product Height (mm)

  9.45

• Tail Cross Section (mm)

  0.38x0.25

• Tail Length (mm)

  2.3

• Tradename

  PCI Express®

• Mounting

  Through Hole
