LED Displays Segmented

EADCT056RA1

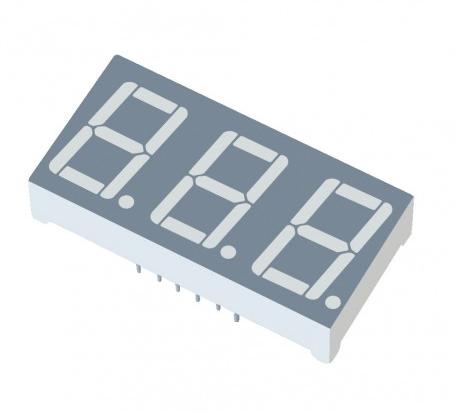

Display Segmented Panel 3DIGIT Brilliant Red CC 12-Pin DIP Module Tube

EVERLIGHT Electronics Co., Ltd

Especificaciones técnicas del producto

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8531.20.00.40

• Automotive

  No

• PPAP

  No

• Type

  Panel

• Number of Digits

  3

• Color

  Brilliant Red

• Digit Size (in)

  0.56

• Character Displayed

  Numeric

• Intensity (ucd)

  17600

• Dominant Wavelength (nm)

  624

• Peak Wavelength (nm)

  632

• Configuration

  Common Cathode

• Maximum Forward Current (mA)

  25

• Maximum Reverse Current (uA)

  100

• Test Current (mA)

  20

• Maximum Reverse Voltage (V)

  5

• Maximum Forward Voltage (V)

  2.4

• Maximum Power Dissipation (mW)

  60

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tube

• Mounting

  Through Hole

• Package Height

  8

• Package Width

  19

• Package Length

  37.7

• PCB changed

  12

• Standard Package Name

  DIP

• Supplier Package

  DIP Module

• Pin Count

  12
