Connector Headers and PCB Receptacles

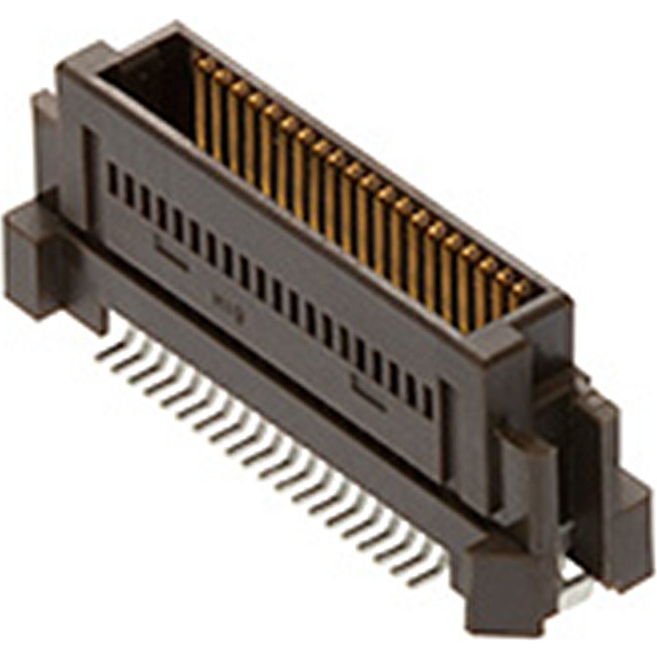

53649-0874

Conn Board to Board HDR 80 POS 0.635mm Solder ST SMD SlimStack T/R

Molex

Especificaciones técnicas del producto

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• Automotive

  No

• PPAP

  No

• Type

  Board to Board

• Gender

  HDR

• Number of Contacts

  80

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  0.635

• Body Orientation

  Straight

• Maximum Current Rating (A)

  0.5/Contact

• Maximum Voltage Rating

  100V

• Maximum Contact Resistance (mOhm)

  60

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  105

• Mating Cycle (Cycles)

  50

• Packaging

  Tape and Reel

• Product Weight (g)

  1.59

• Product Length (mm)

  32.27

• Product Depth (mm)

  6.2

• Product Height (mm)

  8

• Tradename

  SlimStack

• Mounting

  Surface Mount
