ZSS-105-01-G-D-540

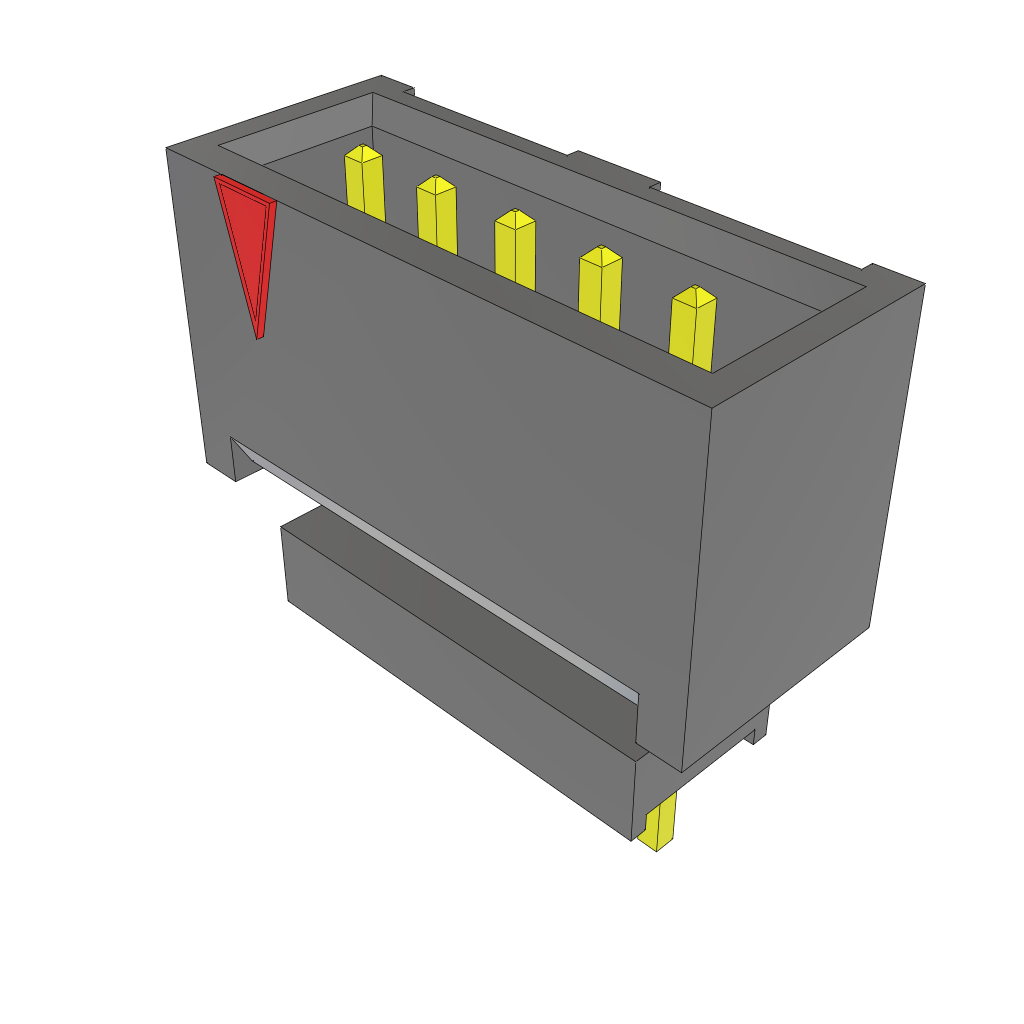

Conn Elevated Shrouded Header HDR 10 POS 2.54mm Solder ST Top Entry Thru-Hole Layer

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Elevated Shrouded Header

• Gender

  HDR

• Number of Contacts

  10

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Polarization Type

  Center Key/Center Slot

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  3

• Insulation Resistance (MOhm)

  5000

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Packaging

  Layer

• Product Length (mm)

  16.51

• Product Depth (mm)

  9.27

• Product Height (mm)

  13.71

• Mounting

  Through Hole
