DC to DC Converter and Switching Regulator Module

VXO78015-1000

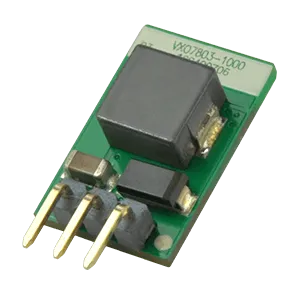

Module DC-DC 12V/24VIN 1-OUT -15V/15V -0.3A/1A 15W 3-Pin Tray

CUI Inc

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  NRND

• HTS

  8542.39.00.01

• Automotive

  No

• PPAP

  No

• Type

  Inverting|Non-Inverting|Step Down|Step Up

• Number of Outputs

  1

• Isolation

  Non-Isolated

• Minimum Input Voltage (V)

  20|8

• Typical Input Voltage (V)

  12|24

• Maximum Input Voltage (V)

  36|18

• Output Voltage (V)

  -15|15

• Output Current (A)

  -0.3|1

• Output Power (W)

  15

• Input/Output Type

  DC/DC

• Maximum Switching Frequency (kHz)

  780

• Switching Regulator

  Yes

• Load Regulation

  0.6%

• Line Regulation

  0.4%

• Efficiency (%)

  96(Typ)

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tray

• Product Weight (g)

  2.1

• Output Type

  Fixed

• Mounting

  Through Hole

• Package Height

  17.5

• Package Width

  7.5(Max)

• Package Length

  11.5

• PCB changed

  3

• Pin Count

  3
