Transistor and Photovoltaic Output Photocouplers

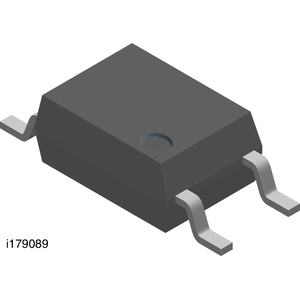

VOM618A-4X001T

Optocoupler DC-IN 1-CH Transistor DC-OUT 4-Pin SOP T/R

Vishay

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Output Type

  DC

• Input Type

  DC

• Output Device

  Transistor

• Number of Channels per Chip

  1

• Minimum Isolation Voltage (Vrms)

  3750

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  110

• Maximum Forward Voltage (V)

  1.6

• Maximum Collector-Emitter Voltage (V)

  80

• Maximum Current Transfer Ratio (%)

  320

• Standard

  CQC|CSA|cUL|DIN|EN|FIMKO|UL|VDE

• Maximum Collector Current (mA)

  100

• Maximum Collector-Emitter Saturation Voltage (mV)

  400

• Maximum Power Dissipation (mW)

  170

• Maximum Reverse Voltage (V)

  6

• Typical Forward Voltage (V)

  1.1

• Maximum Forward Current (mA)

  60

• Packaging

  Tape and Reel

• Minimum Current Transfer Ratio (%)

  160

• Current Transfer Ratio Test Current (mA)

  1

• Typical Rise Time (us)

  5

• Typical Fall Time (us)

  4

• Mounting

  Surface Mount

• Package Height

  2

• Package Width

  4.4

• Package Length

  3.85

• PCB changed

  4

• Standard Package Name

  SO

• Supplier Package

  SOP

• Pin Count

  4

• Lead Shape

  Gull-wing
