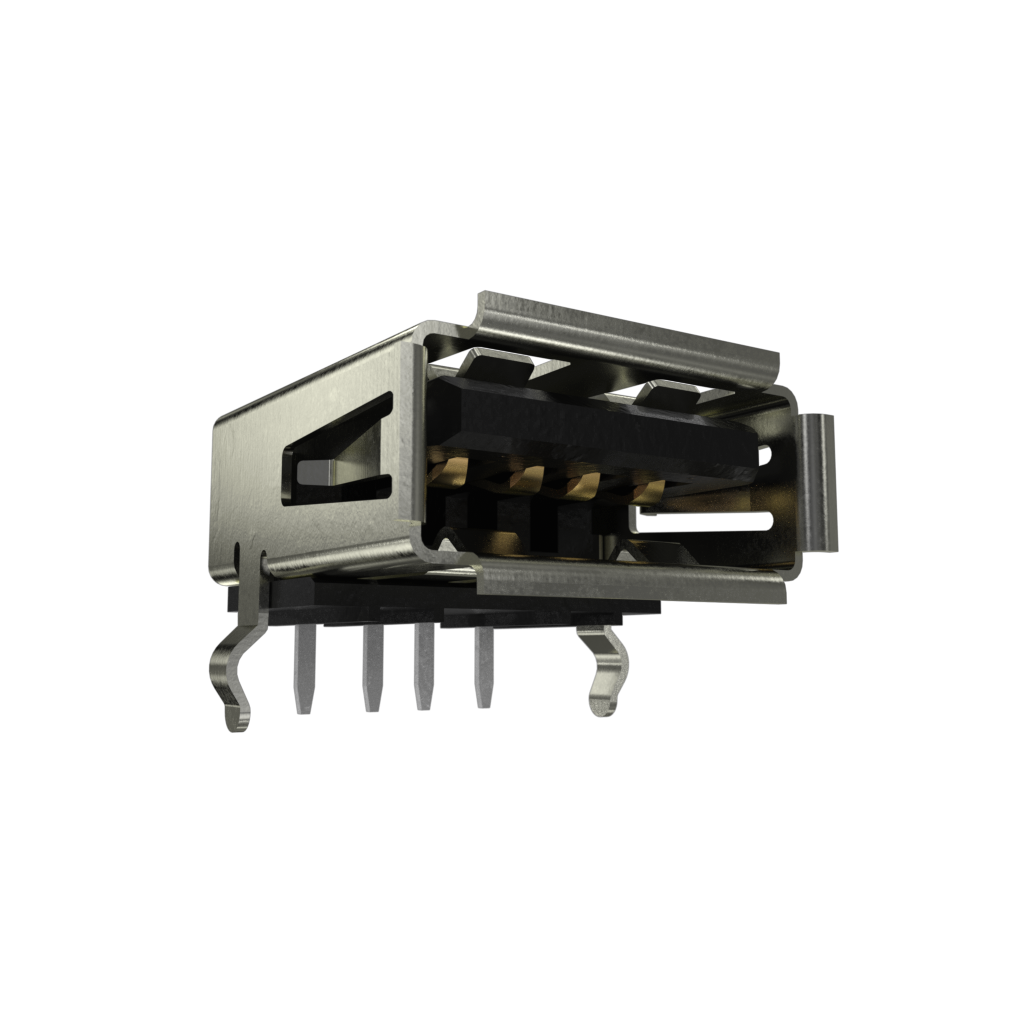

Connector USB

UE27AC54100

USB 2.0, Type A, Receptacle, Right Angle, 4 Pins, Shell Kink with Nickel Plating, 30 uin Gold, Black Housing

Amphenol Communications Solutions

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• SVHC

  Yes

• Automotive

  No

• PPAP

  No

• Type

  USB 2.0 Type A

• Gender

  RCP

• Number of Terminals

  4

• Number of Contacts

  4

• Number of Ports

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2/2.5

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  1.5/Contact

• Maximum Voltage Rating

  30VAC

• Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  30

• Mating Cycle (Cycles)

  1500

• Shell Material

  Copper Alloy

• Shell Plating

  Nickel Over Copper

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  85

• Product Length (mm)

  14.5

• Product Depth (mm)

  13.85

• Product Height (mm)

  6.9

• Mounting

  Through Hole
