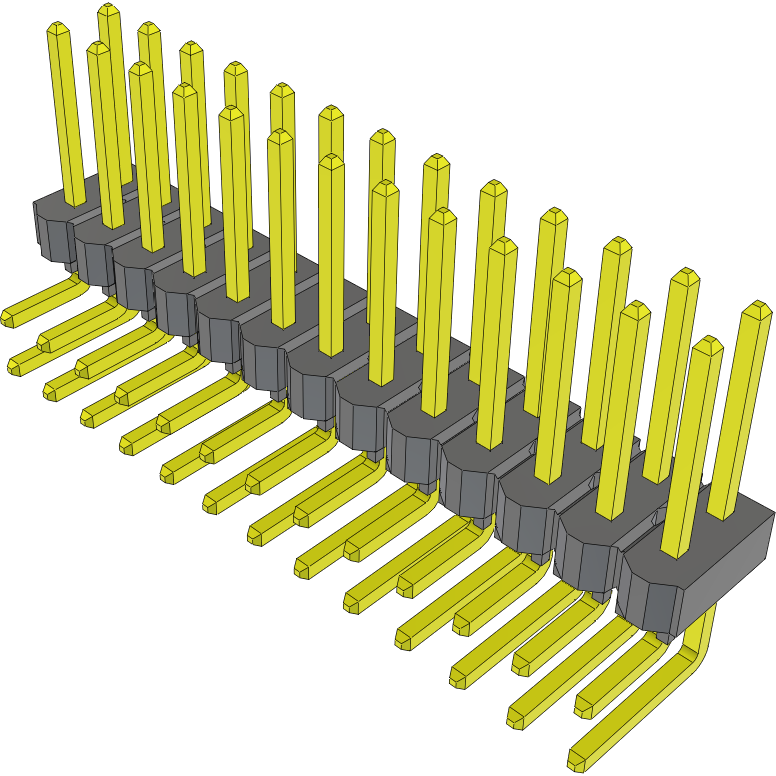

TSW-113-25-G-D-RA

Conn Unshrouded Header HDR 26 POS 2.54mm Solder RA Side Entry Thru-Hole Bulk

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Unshrouded Header

• Gender

  HDR

• Number of Contacts

  26

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Right Angle

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  6.3/Contact

• Maximum Voltage Rating

  515VAC|728VDC

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Packaging

  Bulk

• Product Length (mm)

  33.02

• Product Depth (mm)

  15.05

• Product Height (mm)

  5.56

• Tail Length (mm)

  2.54

• Mounting

  Through Hole
