TSW-103-07-G-S

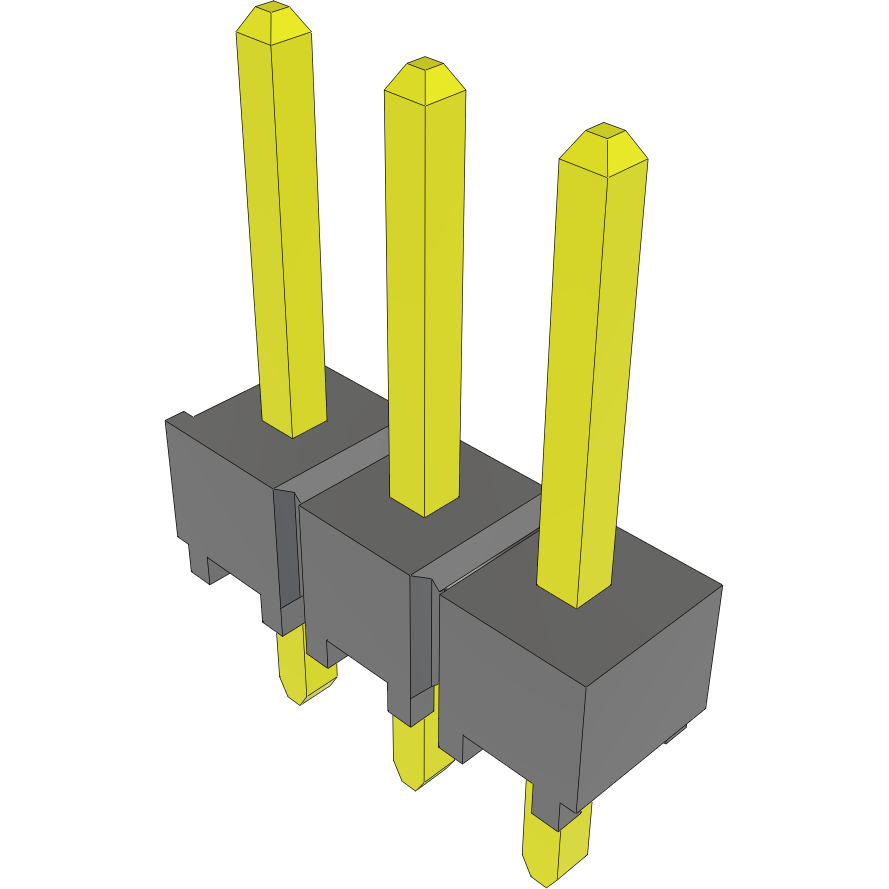

Conn Unshrouded Header HDR 3 POS 2.54mm Solder ST Top Entry Thru-Hole E.L.P.™ Bulk

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Type

  Unshrouded Header

• Gender

  HDR

• Number of Contacts

  3

• Number of Rows

  1

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Maximum Current Rating (A)

  6.3/Contact

• Maximum Voltage Rating

  728VDC|515VAC

• Insulation Resistance (MOhm)

  5000

• Maximum Contact Resistance (mOhm)

  15

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  1000

• Packaging

  Bulk

• Product Length (mm)

  7.62

• Product Depth (mm)

  2.54

• Product Height (mm)

  8.38

• Tradename

  E.L.P.™

• Contact Plating Thickness

  (0.25/1.27)um

• Tail Length (mm)

  2.54

• Mounting

  Through Hole
