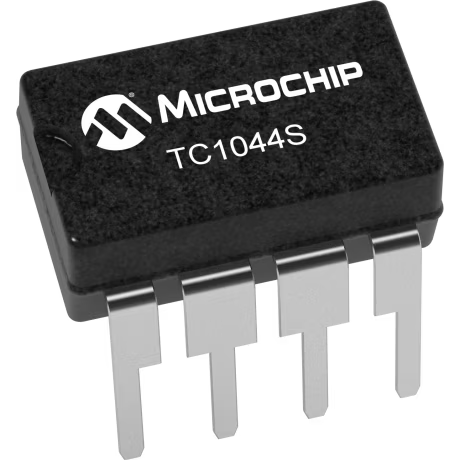

Microchip TechnologyTC1044SCPACharge Pump
Charge Pump INV -1.5V to -12V 8-Pin PDIP Tube
| Compliant | |
| EAR99 | |
| Active | |
| 8542.39.00.90 | |
| Automotive | No |
| PPAP | No |
| Inverting | |
| Adjustable | |
| -1.5 to -12 | |
| 1.5 | |
| 12 | |
| 0.16 | |
| 730 | |
| 45(Typ) | |
| 98(Typ) | |
| 0 | |
| 70 | |
| Tube | |
| Mounting | Through Hole |
| Package Height | 3.3 mm |
| Package Width | 6.35 mm |
| Package Length | 9.27 mm |
| PCB changed | 8 |
| Standard Package Name | DIP |
| Supplier Package | PDIP |
| 8 | |
| Lead Shape | Through Hole |
Thanks to Microchip Technology's TC1044SCPA charge pump voltage doubler, you'll be able to properly increase or decrease the voltage within your electronic circuit. With an output that has a voltage of -12 to -1.5 V, this is power management at its best. In order to ensure parts aren't damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This inverting charge pump has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device has a minimum operating supply voltage of 1.5 V and a maximum of 12 V.
