AC to DC Power Supplies

RPS-75-15

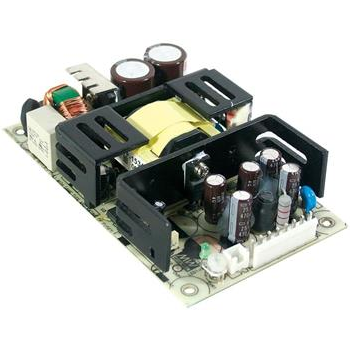

AC/DC Power Supply Single-OUT 15V 6.7A 75W Medical 12-Pin

MEAN WELL

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.95.20

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Regulated

• Style

  Open Frame

• Input/Output Type

  AC/DC

• Number of Outputs

  1

• Output Type

  Fixed

• Output Voltage (V)

  15

• Output Current (A)

  6.7

• Output Power (W)

  75

• Minimum AC Input Voltage (V)

  90

• Typical AC Input Voltage (V)

  110|230

• Maximum AC Input Voltage (V)

  264

• Minimum DC Input Voltage (V)

  127

• Maximum DC Input Voltage (V)

  370

• Minimum Isolation Voltage

  4000VAC

• Line Regulation

  0.5%

• Load Regulation

  1%

• Maximum Input Current (A)

  1.5(Typ)

• Input Frequency (Hz)

  47 to 63

• Tolerance (%)

  ±1

• Efficiency (%)

  83(Typ)

• Configurable

  No

• Input Connector Type

  JST RCY Male

• Output Connector Type

  JST RCY Male

• Power Indicator

  No

• Ripple and Noise

  60mV(Max)

• Medical

  Yes

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  70

• Product Weight (g)

  260

• Mounting

  Screw

• Package Height

  31 + 3(Max)

• Package Width

  76.2

• Package Length

  127

• PCB changed

  12

• Pin Count

  12
