AC to DC Power Supplies

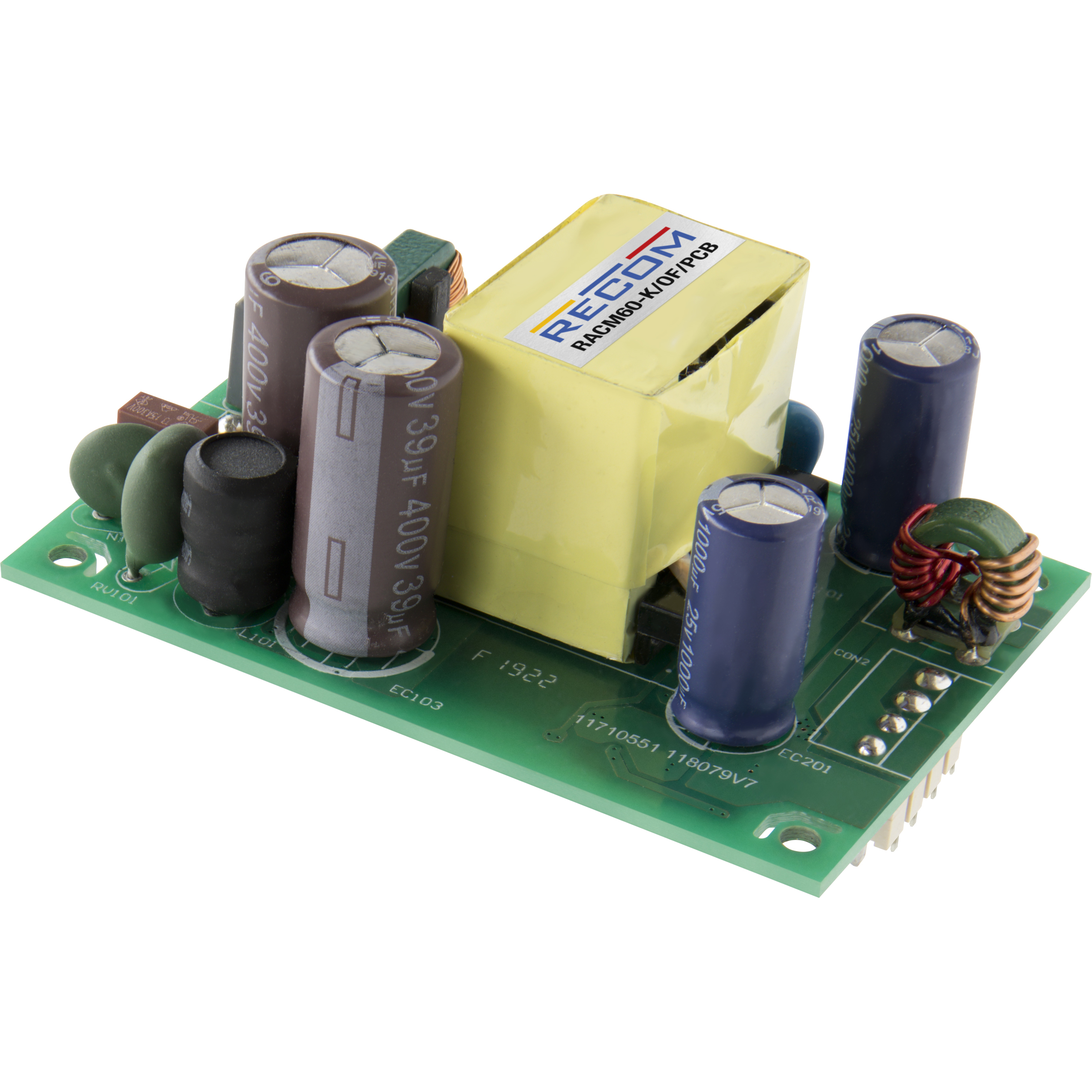

RACM60-24SK/OF/PCB-T

AC/DC Power Supply Single-OUT 24V 2.5A 60W 6-Pin Tray

RECOM Power GmbH

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.95.80

• Automotive

  No

• PPAP

  No

• Type

  Regulated

• Style

  Open Frame

• Input/Output Type

  AC/DC

• Number of Outputs

  1

• Output Type

  Fixed

• Output Voltage (V)

  24

• Output Current (A)

  2.5

• Output Power (W)

  60

• Minimum AC Input Voltage (V)

  80

• Typical AC Input Voltage (V)

  100|240

• Maximum AC Input Voltage (V)

  264

• Minimum DC Input Voltage (V)

  120

• Maximum DC Input Voltage (V)

  370

• Minimum Isolation Voltage

  4000VAC

• Line Regulation

  0.05%(Typ)

• Load Regulation

  0.1%(Typ)

• Maximum Input Current (A)

  1.4

• Input Frequency (Hz)

  47 to 63

• Tolerance (%)

  ±2(Typ)

• Efficiency (%)

  90(Typ)

• Configurable

  No

• Input Connector Type

  PC Pins

• Output Connector Type

  PC Pins

• Power Indicator

  No

• Ripple and Noise

  1%Vo(Max)

• Medical

  Yes

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tray

• Product Weight (g)

  111

• Mounting

  Through Hole

• Package Height

  35.4(Max) mm

• Package Width

  53 mm

• Package Length

  78.4 mm

• PCB changed

  6

• Pin Count

  6
