Convertidores DC a DC y Módulos Reguladores de Conmutación

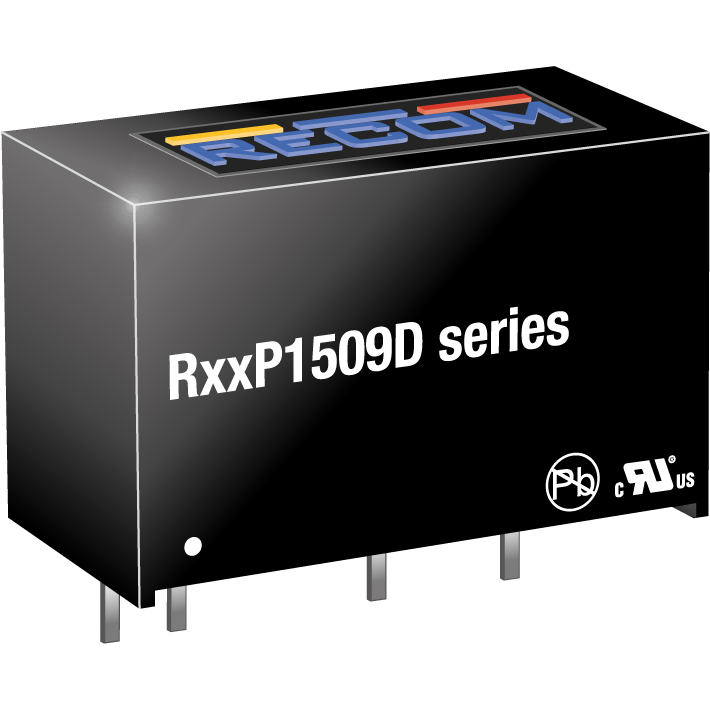

R12P1509D

Module DC-DC 12VIN 2-OUT 15V/-9V 0.033A/-0.056A 1W 5-Pin SIP Tube

RECOM Power GmbH

Product Technical Specifications

• RoHS (Unión Europea)

  Compliant

• ECCN (Estados Unidos)

  EAR99

• Estatus de pieza

  Active

• Automotive

  No

• PPAP

  No

• Type

  Inverting|Non-Inverting|Step Down|Step Up

• Isolation

  Isolated

• Number of Outputs

  2

• Minimum Input Voltage (V)

  10.8

• Typical Input Voltage (V)

  12

• Maximum Input Voltage (V)

  13.2

• Output Voltage (V)

  15/-9

• Output Current (A)

  0.033/-0.056

• Output Power (W)

  1

• Minimum Isolation Voltage

  6400VDC

• Maximum Switching Frequency (kHz)

  60(Typ)

• Switching Regulator

  Yes

• Load Regulation

  10%

• Line Regulation

  1.2%/1%Vi(Typ)

• Efficiency (%)

  80(Typ)

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  90

• Packaging

  Tube

• Output Type

  Fixed

• Mounting

  Through Hole

• Package Height

  12.5

• Package Width

  9.8

• Package Length

  19.5

• PCB changed

  5

• Standard Package Name

  SIP

• Supplier Package

  SIP

• Pin Count

  5

• Lead Shape

  Through Hole
