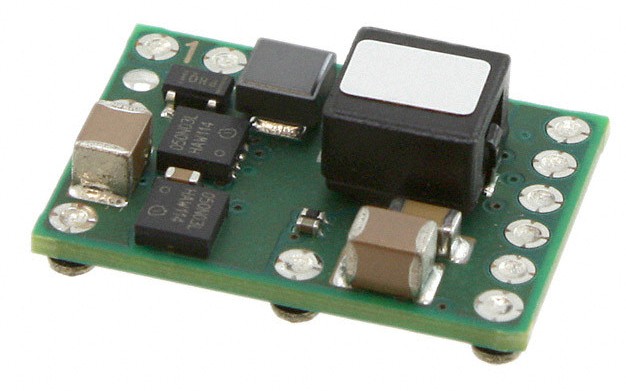

DC to DC Converter and Switching Regulator Module

PTH04T240FAZT

Module DC-DC 1-OUT 0.69V to 2V 10A 11-Pin DIP SMD Module T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.85.00

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Isolation

  Non-Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  2.2

• Maximum Input Voltage (V)

  5.5

• Output Voltage (V)

  0.69 to 2

• Output Current (A)

  10

• Input/Output Type

  DC/DC

• Maximum Switching Frequency (kHz)

  400

• Switching Regulator

  No

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  85

• Packaging

  Tape and Reel

• Output Type

  Adjustable

• Mounting

  Surface Mount

• Package Width

  15.75

• Package Length

  22.1

• PCB changed

  11

• Standard Package Name

  DIP

• Supplier Package

  DIP SMD Module

• Pin Count

  11

• Lead Shape

  Ball
