Blowers and Fans

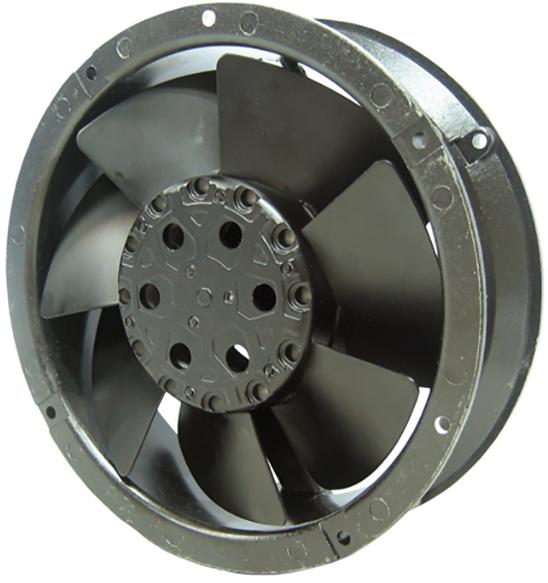

OA172AP-22-2TB1855

AC Fan Ball Bearing 230V 35W/32W 50Hz/60Hz 2350RPM/2300RPM 162CFM/155CFM 48dB Flange Mount

ORION FANS

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8414.59.65.90

• Automotive

  Unknown

• PPAP

  Unknown

• Type

  Axial

• Category

  AC Fan

• Maximum Voltage Rating (V)

  230

• Input Voltage Range (V)

  200 to 240

• Power Rating (W)

  35|32

• Typical Speed (r/min)

  2350|2300

• Maximum Airflow (CFM)

  162|155

• Maximum Pressure

  0.37inH2O|0.46inH2O

• Noise Level (dB)

  48

• Bearings

  Ball

• Mounting

  Flange Mount

• Protection

  IP55

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  80

• Product Diameter (Metric) (mm)

  172

• Product Height (Metric) (mm)

  51

• Special Features

  Middle Speed
