Blowers and Fans

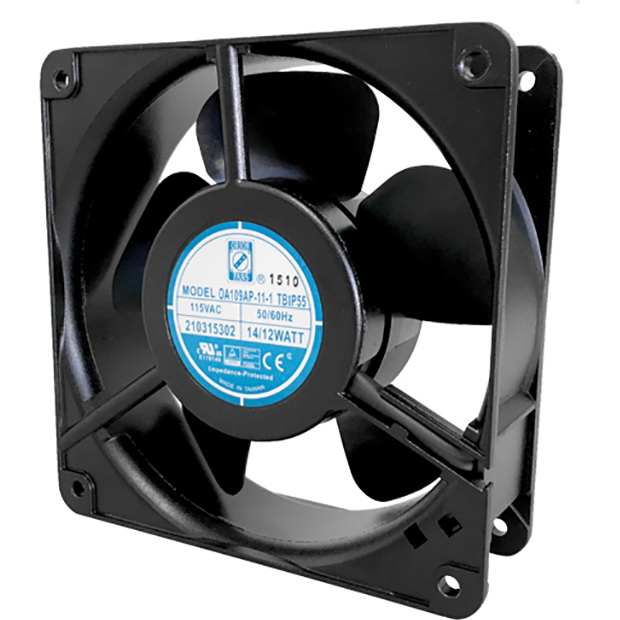

OA109AP-11-1TBIP55

AC Fan Ball Bearing 115V 0.16A 12W 50Hz/60Hz 3100RPM 106CFM 46dB Flange Mount

ORION FANS

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8414.59.65.90

• Automotive

  Unknown

• PPAP

  Unknown

• Category

  AC Fan

• Maximum Voltage Rating (V)

  115

• Input Voltage Range (V)

  100 to 216

• Maximum Locked Rotor Current (A)

  0.27|0.23

• Line Current (A)

  0.16

• Power Rating (W)

  12

• Typical Speed (r/min)

  2650|3100

• Maximum Airflow (CFM)

  92|106

• Maximum Pressure

  0.32inH2O

• Noise Level (dB)

  46

• Bearings

  Ball

• Shape

  Square

• Size (Metric) (mm)

  120 X 120 X 38

• Mounting

  Flange Mount

• Protection

  IP55|Impedance

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  70

• Product Length (Metric) (mm)

  120

• Product Depth (Metric) (mm)

  120

• Product Height (Metric) (mm)

  38

• Special Features

  High Speed
