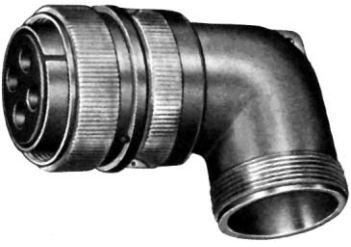

AmphenolMS3108A14S-6PZConnector Circular
Conn Circular PIN 6 POS Solder Cup RA Cable Mount 6 Terminal 1 Port Medical
| Not Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.20 | |
| Automotive | Unknown |
| PPAP | Unknown |
| MIL-5015 | |
| Circular | |
| PL | |
| Cable Mount | |
| Right Angle | |
| Z | |
| 1 | |
| 6 | |
| 6 | |
| PIN | |
| Solder Cup | |
| 14S-6 | |
| No | |
| Silver | |
| Aluminum Alloy | |
| Cadmium | |
| Olive Drab | |
| 250VDC|200VAC | |
| -55 | |
| 125 | |
| Reverse Bayonet | |
| 26.97 | |
| 38.88 |
By using this standard cylindrical MS3108A14S-6PZ connector from Amphenol you can connect circular peripherals straight to your device. This PL connector has 6 contacts that are plated with silver. It has a right angle body orientation. It has a plug type gender. Its shell size is 14S-6. This product is 26.97 mm deep. It uses the solder cup termination method. This circular connector has an operating temperature of -55 to 125 °C.
