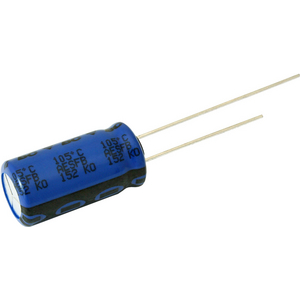

VishayMAL215262229E3Capacitor Aluminum Electrolytic
Cap Aluminum Lytic 22uF 200V 20% (10 X 16mm) Radial 5mm 0.12A 3000h 105°C Bulk Automotive AEC-Q200
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | Yes |
| PPAP | Unknown |
| Electrolytic | |
| 22uF | |
| 20% | |
| 200VDC | |
| 3.2@20°C@10kHz | |
| 0.12 | |
| 202@1Min | |
| 3000 | |
| Polar | |
| Long Life|Non-Solid Electrolyte|Polarized Aluminum Electrolytic|Ultra High CV | |
| Aluminum Cylindrical Can | |
| Through Hole | |
| Radial | |
| 2 | |
| 5 | |
| Lead Cut Only | |
| 10 X 16 | |
| -40 | |
| 105 | |
| Bulk | |
| 10 | |
| 16 | |
| 1.9 | |
| 0.6 |
Using this electrolytic MAL215262229E3 aluminum capacitor from Vishay in your electronic circuit you'll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 22uF. This product is 16 mm tall with a diameter of 10 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The MAL215262229E3 aluminum electrolytic capacitor has a radial termination style. Its leakage current is 202@1Min μA. It has a tolerance of 20%.
