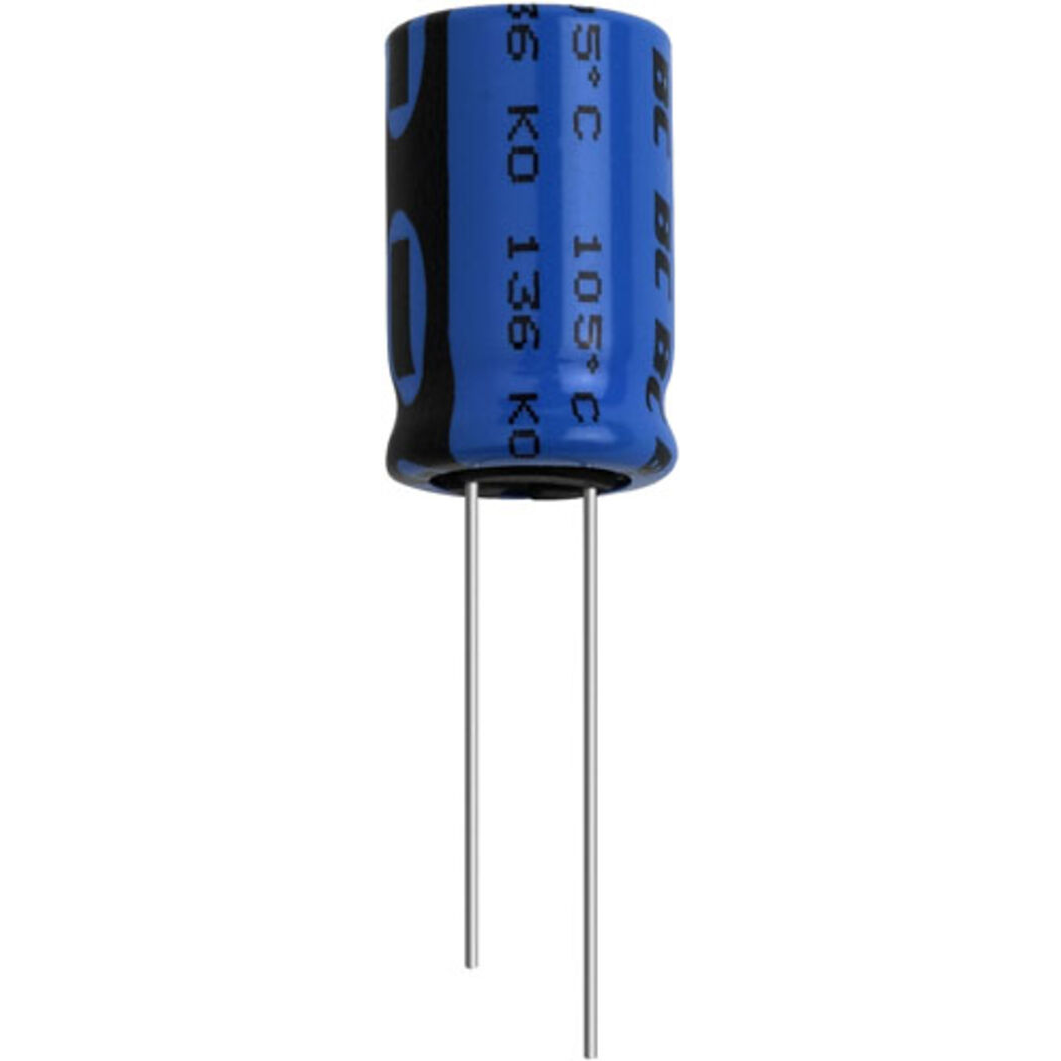

VishayMAL213660221E3Capacitor Aluminum Electrolytic
Cap Aluminum Lytic 220uF 35V 20% (10 X 16mm) Radial 5mm 0.83A 6000h 105°C Bulk
| Compliant | |
| EAR99 | |
| Active | |
| 8532.22.00.20 | |
| Automotive | No |
| PPAP | No |
| Electrolytic | |
| 220uF | |
| 20% | |
| 35VDC | |
| Low | |
| 0.084@20°C@100kHz|0.17@-10°C@100kHz | |
| 0.83 | |
| 77@2Min | |
| 6000 | |
| Polar | |
| Low ESR|Non-Solid Electrolyte|Polarized Aluminum Electrolytic|Very Long Useful Life|Very Low Impedance | |
| Aluminum Cylindrical Can | |
| Through Hole | |
| Radial | |
| 2 | |
| 5 | |
| Lead Cut Only | |
| 10 X 16 | |
| -55 | |
| 105 | |
| Bulk | |
| 10 | |
| 16 | |
| 1.9 | |
| 0.6 |
Use this relatively high equivalent series resistance electrolytic MAL213660221E3 aluminum capacitor from Vishay to generate high heat for a given current level. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 16 mm tall with a diameter of 10 mm. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. The MAL213660221E3 aluminum electrolytic capacitor has a radial termination style. Its leakage current is 77@2Min μA. Its capacitance value is 220uF. It has a tolerance of 20%.
