Switch Toggle

M2046SS1W01

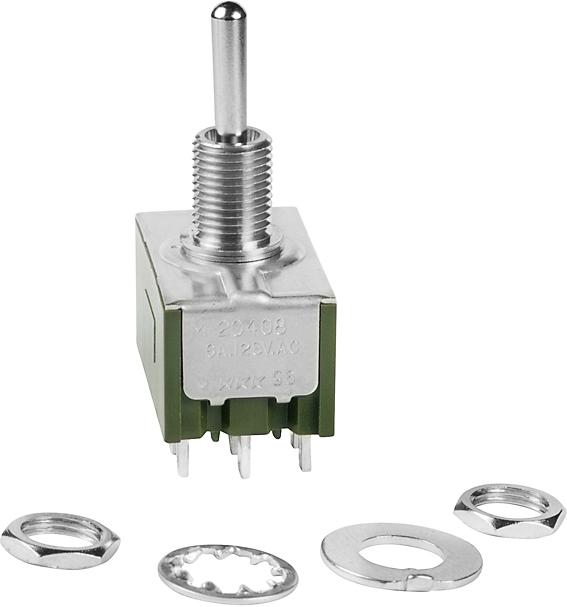

Switch Toggle (ON) ON (ON) DP3T Small Bat Lever Solder Lug 6A 250VAC 30VDC Panel Mount with Threads

NKK Switches

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8536.50.90.65

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Actuator Style

  Small Bat Lever

• Pole Throw Configuration

  DP3T

• Switch Configuration

  (ON) ON (ON)

• Bushing Type

  Threaded

• Maximum Current Rating (A)

  6@125VAC

• Dielectric Strength

  1000VAC

• Minimum Insulation Resistance (MOhm)

  1000

• Maximum Contact Resistance (mOhm)

  10

• Electrical Life (Cycles)

  25000

• Mechanical Life (Cycles)

  100000

• Actuator Color

  Bright Chrome

• Actuator Length (mm)

  10.5

• Number of Rows

  4

• Row Spacing (mm)

  4.8

• Mounting

  Panel Mount with Threads

• Termination Style

  Solder Lug

• Number of Terminals

  12

• Terminal Length (mm)

  4.5

• Terminal Pitch (mm)

  4.7

• Seal

  Epoxy

• Seal Location

  Terminals

• Seal Description

  Epoxy

• Body Orientation

  Straight

• Minimum Operating Temperature (°C)

  -30

• Maximum Operating Temperature (°C)

  85

• Size Type

  Miniature

• Thread Size

  1/4-40

• Body Length (mm)

  13

• Bushing Length (mm)

  8.9

• Body Depth (mm)

  22.3

• Body Height (mm)

  11.5

• Product Length (mm)

  13

• Product Depth (mm)

  22.3

• Product Height (mm)

  35.4
