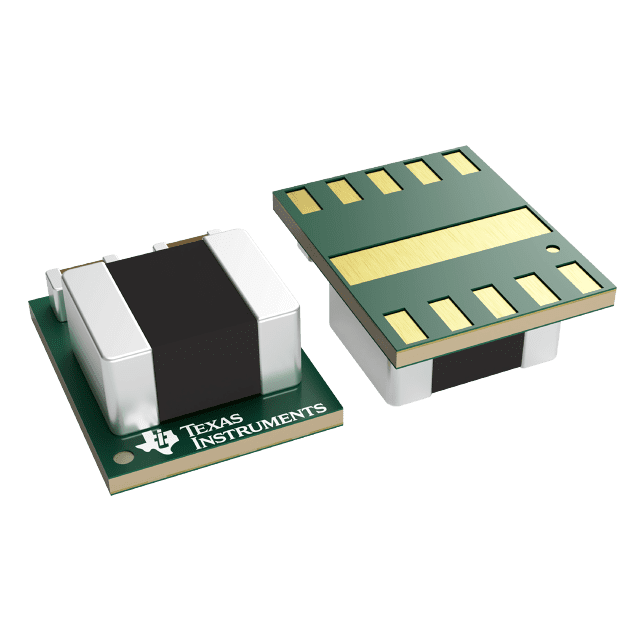

DC to DC Converter and Switching Regulator Module

LMZM23600V5SILR

Module DC-DC 1-OUT 5V 0.5A 10-Pin uSIP EP T/R

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8504.40.85.00

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Isolation

  Non-Isolated

• Number of Outputs

  1

• Minimum Input Voltage (V)

  4

• Maximum Input Voltage (V)

  36

• Output Voltage (V)

  5

• Output Current (A)

  0.5

• Input/Output Type

  DC/DC

• Typical Standby Current (mA)

  0.005

• Maximum Switching Frequency (kHz)

  750(Typ)

• Switching Regulator

  Yes

• Efficiency (%)

  90

• On/Off Logic

  Positive

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tape and Reel

• Output Type

  Fixed

• Mounting

  Surface Mount

• Package Height

  1.58(Max)

• Package Width

  3.9(Max)

• Package Length

  3.1(Max)

• PCB changed

  10

• Standard Package Name

  SIP

• Supplier Package

  uSIP EP

• Pin Count

  10
