DC to DC Controllers

LM5180QNGURQ1

DC/DC Cntrlr Single-OUT Flyback 350kHz 8-Pin WSON EP T/R Automotive AEC-Q100

Texas Instruments

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8542.39.00.90

• Automotive

  Yes

• PPAP

  Yes

• Number of Outputs

  1

• Topology

  Flyback

• Output Voltage (V)

  -1.5 to 100

• Maximum Switching Frequency (kHz)

  350

• Minimum Input Voltage (V)

  4.5

• Maximum Input Voltage (V)

  65

• Operating Supply Voltage Range (V)

  4.5 to 65

• Maximum Supply Current (mA)

  0.26(Typ)

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  150

• Supplier Temperature Grade

  Automotive

• Packaging

  Tape and Reel

• Mounting

  Surface Mount

• Package Height

  0.75(Max) mm

• Package Width

  4.1(Max) mm

• Package Length

  4.1(Max) mm

• PCB changed

  8

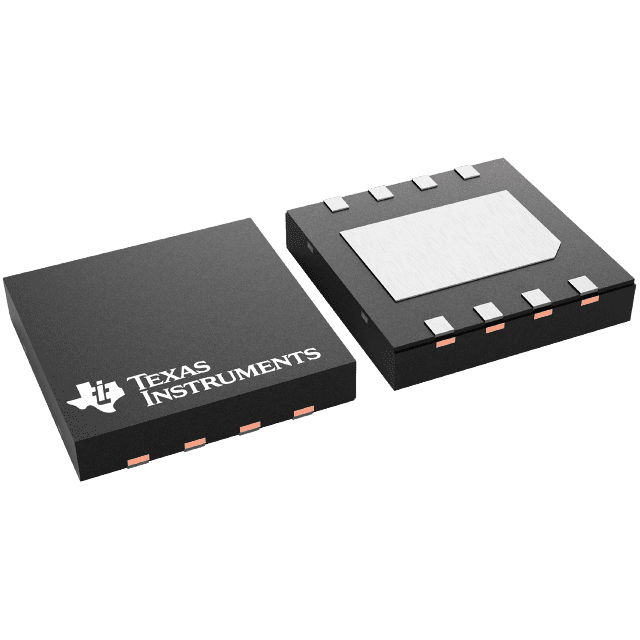

• Standard Package Name

  SON

• Supplier Package

  WSON EP

• Pin Count

  8
