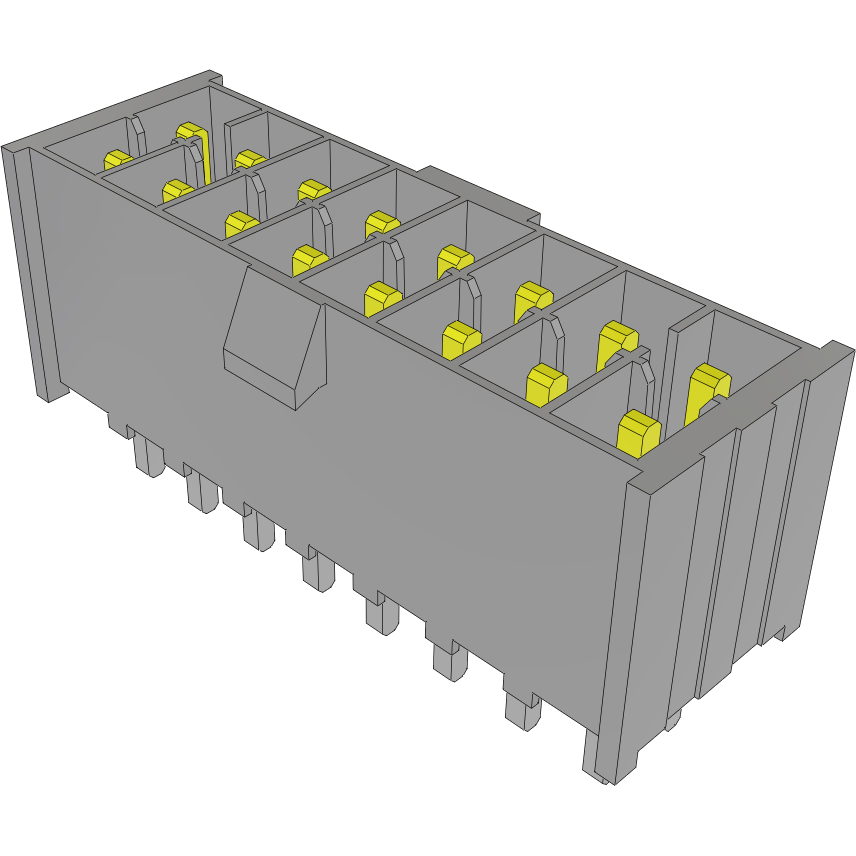

IPL1-108-01-S-D-K

Conn Wire to Board HDR 16 POS 2.54mm Solder ST Top Entry Thru-Hole Mini Mate® Tube

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  Wire to Board

• Gender

  HDR

• Number of Contacts

  16

• Number of Rows

  2

• Termination Method

  Solder

• Terminal Pitch (mm)

  2.54

• Body Orientation

  Straight

• Polarization Type

  Dual Key

• Row Spacing (mm)

  2.54

• Maximum Current Rating (A)

  4.8/Contact

• Maximum Voltage Rating

  389VDC|275VAC

• Insulation Resistance (MOhm)

  5000

• Maximum Contact Resistance (mOhm)

  15

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Mating Cycle (Cycles)

  100

• Packaging

  Tube

• Product Length (mm)

  21.84

• Product Depth (mm)

  7.88

• Product Height (mm)

  8.13

• Tradename

  Mini Mate®

• Tail Length (mm)

  3.05

• Mounting

  Through Hole
