Audio Indicators and Alerts

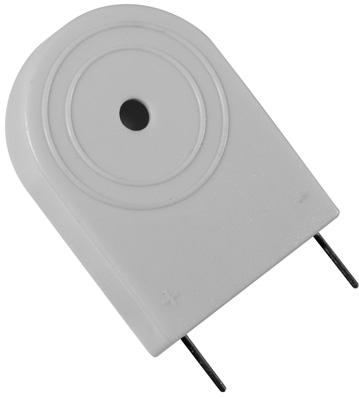

IP235812-1

Audio Indicator Piezo 3V 24V 8mA 12V 85dBA Through Hole Pin

DB Unlimited

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8531.80.90.41

• Type

  Indicator

• Technology

  Piezo

• Maximum Resonant Frequency (Hz)

  5800

• Minimum Sound Pressure (dBA)

  85dBA

• Tone Mode

  Single

• Minimum Operating Supply Voltage

  3V

• Typical Operating Supply Voltage

  12V

• Maximum Operating Supply Voltage

  24V

• Maximum Supply Current (mA)

  8

• Mounting

  Through Hole

• Termination Method

  Pin

• Number of Terminals

  2

• Minimum Operating Temperature (°C)

  -20

• Maximum Operating Temperature (°C)

  60

• Product Length (mm)

  6.8

• Product Depth (mm)

  23.4

• Product Height (mm)

  32
