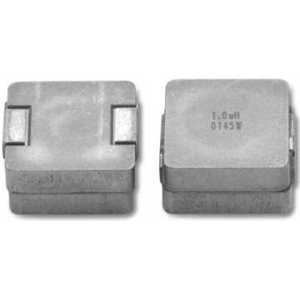

VishayIHLP5050FDER1R0M01Inductor Surface Mount
Power Choke Shielded Wirewound 1uH 20% 100KHz Powdered Iron 32A 0.002Ohm DCR 5050 T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8504.50.80.00 | |
| Automotive | No |
| PPAP | No |
| Power Choke | |
| Wirewound | |
| Shielded | |
| Powdered Iron | |
| 1u | |
| 20 | |
| 20% | |
| 100K | |
| 32(Typ) | |
| 49(Typ) | |
| 0.002 | |
| 2 | |
| 5050 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| 13.7 | |
| Surface Mount | |
| 12.9 | |
| 6.4 |
This power IHLP5050FDER1R0M01 surface mount inductor from Vishay is available in all standard chip sizes in multilayer thick film and thin film deposition and wire wound styles. This SMD inductor has an operating temperature range of -55 °C to 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This SMD inductor has a maximum DC current of 32(Typ) A with a maximum resistance of 2m Ohm. This product is 13.7 mm long, 6.5 mm tall and 12.9 mm deep. It has an inductance of 1u H. Its test frequency is 100K Hz. It has a tolerance of 20%. This device utilizes wirewound technology.
