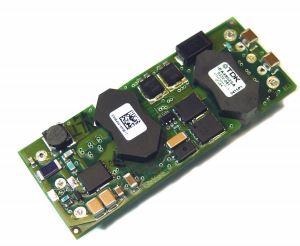

DC to DC Converter and Switching Regulator Module

IEA48003A280V-001-R

Module DC-DC 48VIN 1-OUT 28V 2.67A 75W 8-Pin 1/8-Brick

TDK-Lambda

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  NRND

• HTS

  8504.40.95.20

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  Step Down

• Number of Outputs

  1

• Isolation

  Isolated

• Minimum Input Voltage (V)

  36

• Typical Input Voltage (V)

  48

• Maximum Input Voltage (V)

  75

• Output Voltage (V)

  28

• Output Current (A)

  2.67

• Output Power (W)

  75

• Minimum Isolation Voltage

  1500VDC

• Input/Output Type

  DC/DC

• Maximum Switching Frequency (kHz)

  450

• Switching Regulator

  Yes

• Load Regulation

  70mV

• Line Regulation

  70mV

• Efficiency (%)

  90

• On/Off Logic

  Negative

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  125

• Product Weight (g)

  30.4

• Output Type

  Fixed

• Mounting

  Through Hole

• Package Height

  8.8 mm

• Package Width

  22.9 mm

• Package Length

  58.4 mm

• PCB changed

  8

• Supplier Package

  1/8-Brick

• Pin Count

  8

• Lead Shape

  Through Hole
