Connector Card Edge

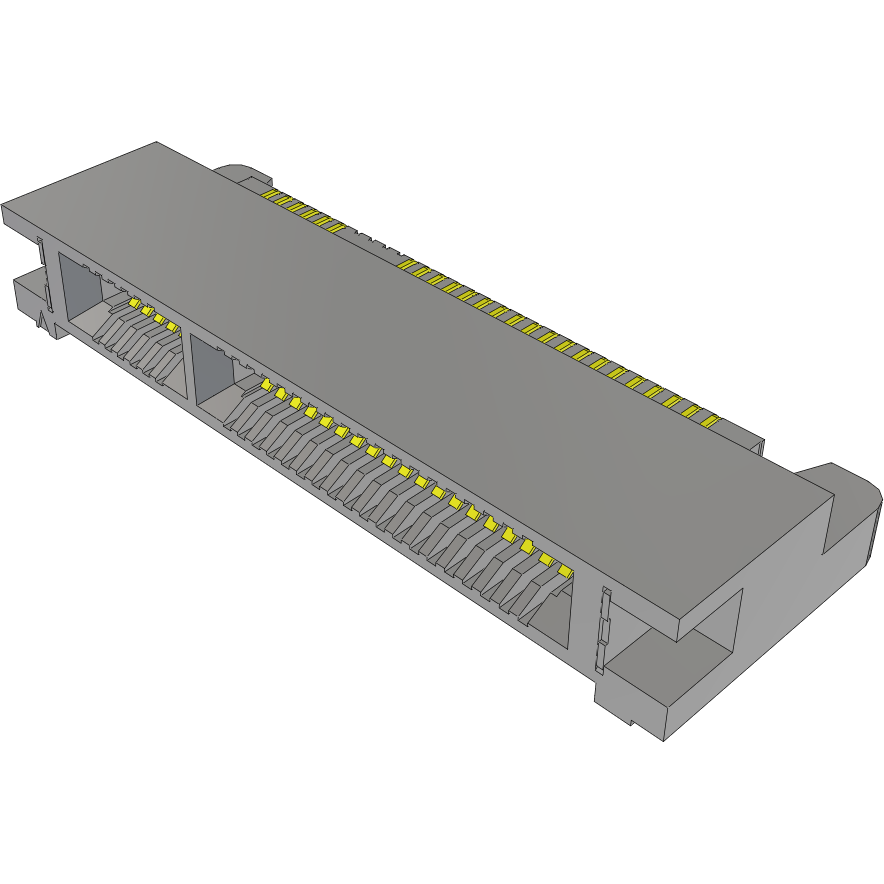

HSEC8-125-01-L-RA-L2

Conn High Speed Combo Card Edge SKT 50 POS 0.8mm Solder RA SMD Tray

Samtec

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8536.69.40.40

• Automotive

  No

• PPAP

  No

• Type

  High Speed Combo Card Edge

• Gender

  SKT

• Card Type

  Dual Edge

• Card Thickness (mm)

  1.6

• Number of Contacts

  50

• Number of Rows

  2

• Termination Method

  Solder

• Contact Type

  Cantilever Bellows

• Terminal Pitch (mm)

  0.8

• Body Orientation

  Right Angle

• Maximum Current Rating (A)

  2.6/Contact

• Maximum Voltage Rating

  247VDC|175VAC

• Minimum Operating Temperature (°C)

  -55

• Maximum Operating Temperature (°C)

  125

• Packaging

  Tray

• Product Length (mm)

  28.61

• Product Depth (mm)

  12.05

• Product Height (mm)

  5.2

• Mounting

  Surface Mount
