AC to DC Power Supplies

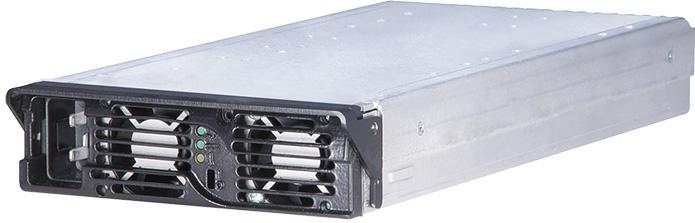

FNP1500-48G

AC/DC Power Supply Dual-OUT 48V/12V 32.2A/1A 1512W

Bel Power Solutions

Product Technical Specifications

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  8504.40.95.80

• Automotive

  No

• PPAP

  No

• Type

  Regulated

• Style

  Enclosed

• Input/Output Type

  AC/DC

• Number of Outputs

  2

• Output Type

  Fixed

• Output Voltage (V)

  48|12

• Output Current (A)

  32.2|1

• Output Power (W)

  1512

• Minimum AC Input Voltage (V)

  85

• Typical AC Input Voltage (V)

  230

• Maximum AC Input Voltage (V)

  264

• Line Regulation

  0.5%

• Load Regulation

  49.44V|0.4V(Typ)

• Maximum Input Current (A)

  20(rms)

• Input Frequency (Hz)

  47 to 63

• Tolerance (%)

  ±0.5

• Efficiency (%)

  90(Typ)

• Input Connector Type

  IEC 320 C19

• Power Indicator

  Yes

• Ripple and Noise

  480mV(Max)|120mV(Max)

• Medical

  No

• Minimum Operating Temperature (°C)

  0

• Maximum Operating Temperature (°C)

  70

• Mounting

  Rack

• Package Height

  40.5

• Package Width

  141.2

• Package Length

  279.4
