Power Management Development Boards and Kits

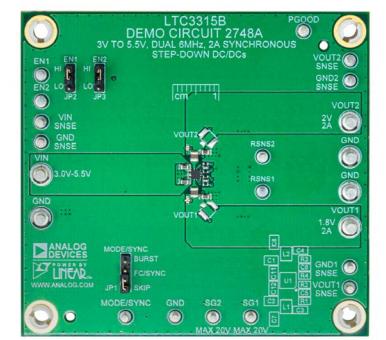

DC2748A

LTC3315B DC to DC Converter and Switching Regulator Chip 1.8V/2V Output Demonstration Circuit

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8473.30.11.80

• Type

  Demonstration Circuit

• Supported Device Technology

  DC to DC Converter and Switching Regulator Chip

• Number of Outputs

  2

• Output Voltage Range (VDC)

  1.8(Typ)/2(Typ)

• Output Current (mA)

  2000

• Input Voltage Range

  2.25VDC to 5.5VDC

• Typical Switching Frequency (kHz)

  6000

• Supported Device

  LTC3315B
