Power Management Development Boards and Kits

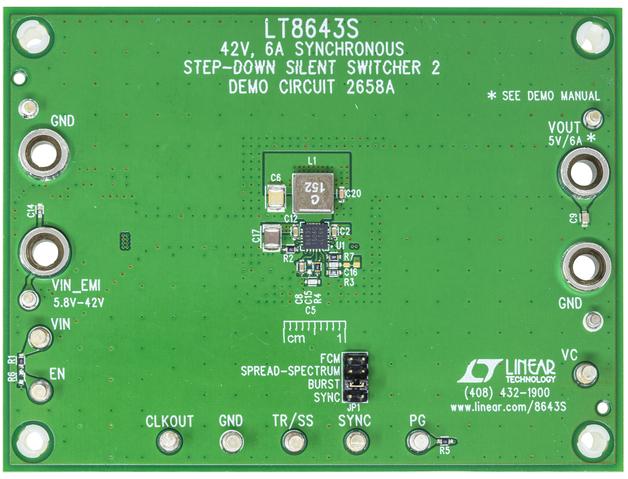

DC2658A

LT8643S DC to DC Converter and Switching Regulator Chip 4.85V to 5.15V Output Demonstration Circuit

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8543.70.98.60

• Automotive

  Yes

• PPAP

  No

• Type

  Demonstration Circuit

• Supported Device Technology

  DC to DC Converter and Switching Regulator Chip

• Number of Outputs

  1

• Output Voltage Range (VDC)

  4.85 to 5.15

• Output Current (mA)

  6000

• Input Voltage Range

  5.8VDC to 42VDC

• Typical Switching Frequency (kHz)

  2000

• Efficiency (%)

  94.2

• Supported Device

  LT8643S
