Power Management Development Boards and Kits

DC2313A

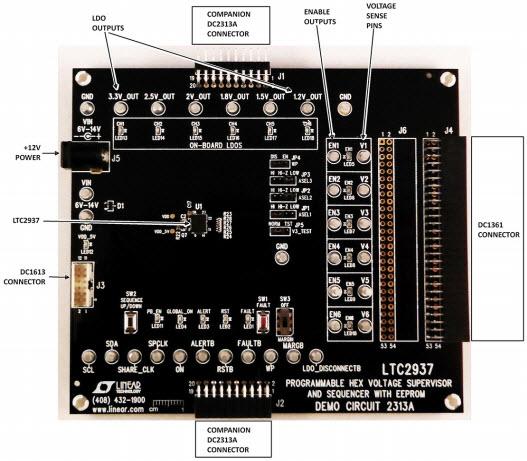

LTC2937 Demo Board, Programmable Six Channel Sequencer and Voltage Supervisor with EEPROM [requires DC1613]

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8473.30.11.80

• Automotive

  No

• PPAP

  No

• Type

  Demonstration Circuit

• Supported Device Technology

  Supervisory Circuit

• Number of Outputs

  6

• Output Current (mA)

  20

• Input Voltage Range

  6VDC to 14VDC

• Typical Switching Frequency (kHz)

  400(Max)

• Supported Device

  LTC2937

• Minimum Operating Temperature (°C)

  0

• Maximum Operating Temperature (°C)

  60
