DC2276A

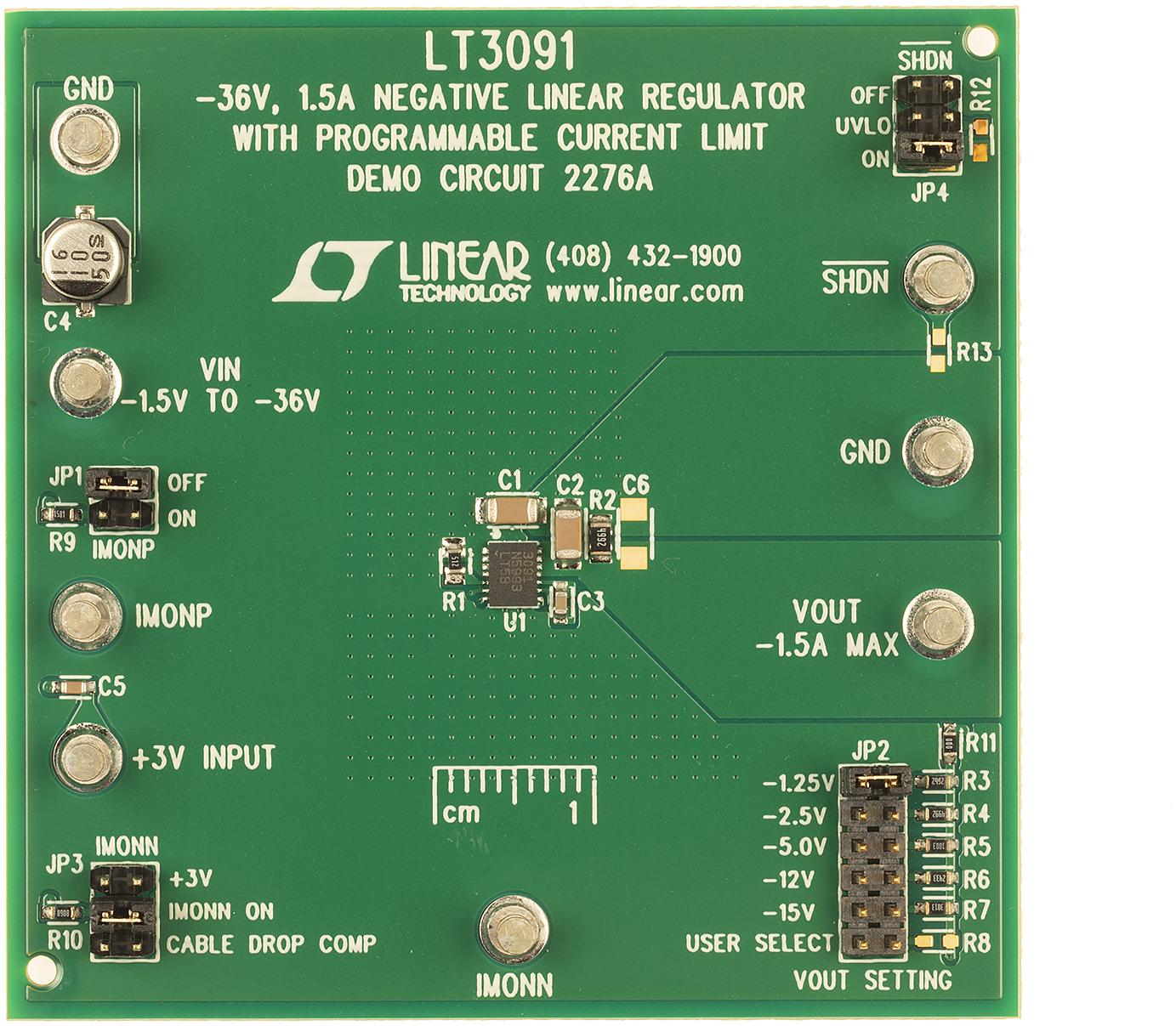

LT3091EDE Demo Board, Negative LDO with Programmable Current Limit, –1.5V ≤ VIN ≤ –36V, VOUT = –1.25V/–2.5V/–5V/–12V/–15V @ 1.5A

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8473.30.11.80

• Automotive

  No

• PPAP

  No

• Type

  Demonstration Circuit

• Supported Device Technology

  Linear Regulator

• Number of Outputs

  1

• Output Voltage Range (VDC)

  1.25(Typ)|2.5(Typ)|5(Typ)|12(Typ)|15(Typ)

• Output Current (mA)

  10|1500

• Input Voltage Range

  1.5VDC to 36VDC

• Supported Device

  LT3091EDE
