DC2046A-C

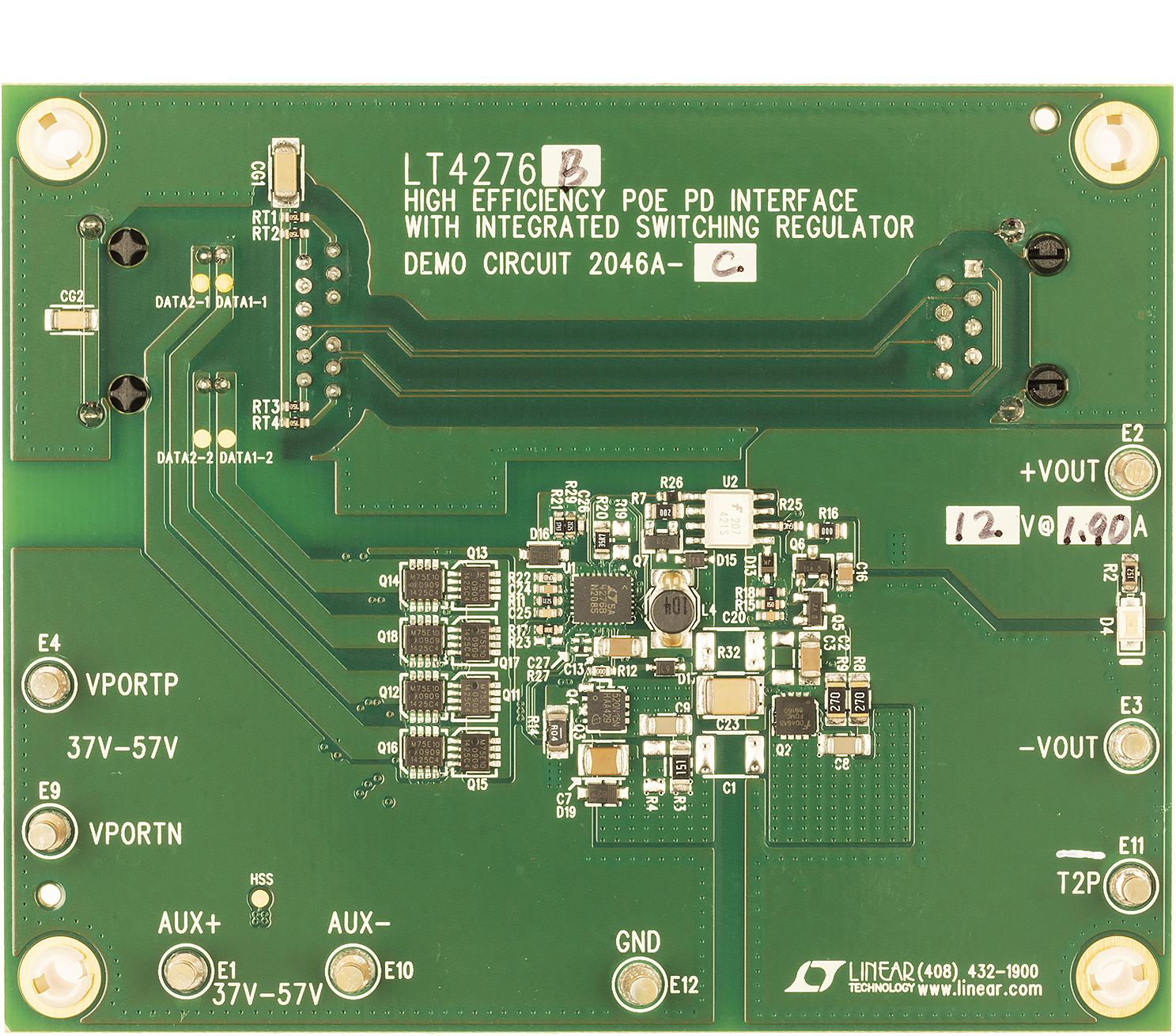

LT4276B/LT4321 Demo Board, PoE+ (25W, 12V/1.9A) PD with DC/DC and Ideal Diode Bridge

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8473.30.11.80

• Automotive

  No

• PPAP

  No

• Type

  Demonstration Circuit

• Supported Device Technology

  Power Over Ethernet Controller

• Number of Outputs

  1

• Output Voltage Range (VDC)

  12(Typ)

• Output Current (mA)

  1900

• Input Voltage Range

  37VDC to 57VDC

• Typical Switching Frequency (kHz)

  250

• Efficiency (%)

  92

• Supported Device

  LT4276/LT4321
