Power Management Development Boards and Kits

DC2001A

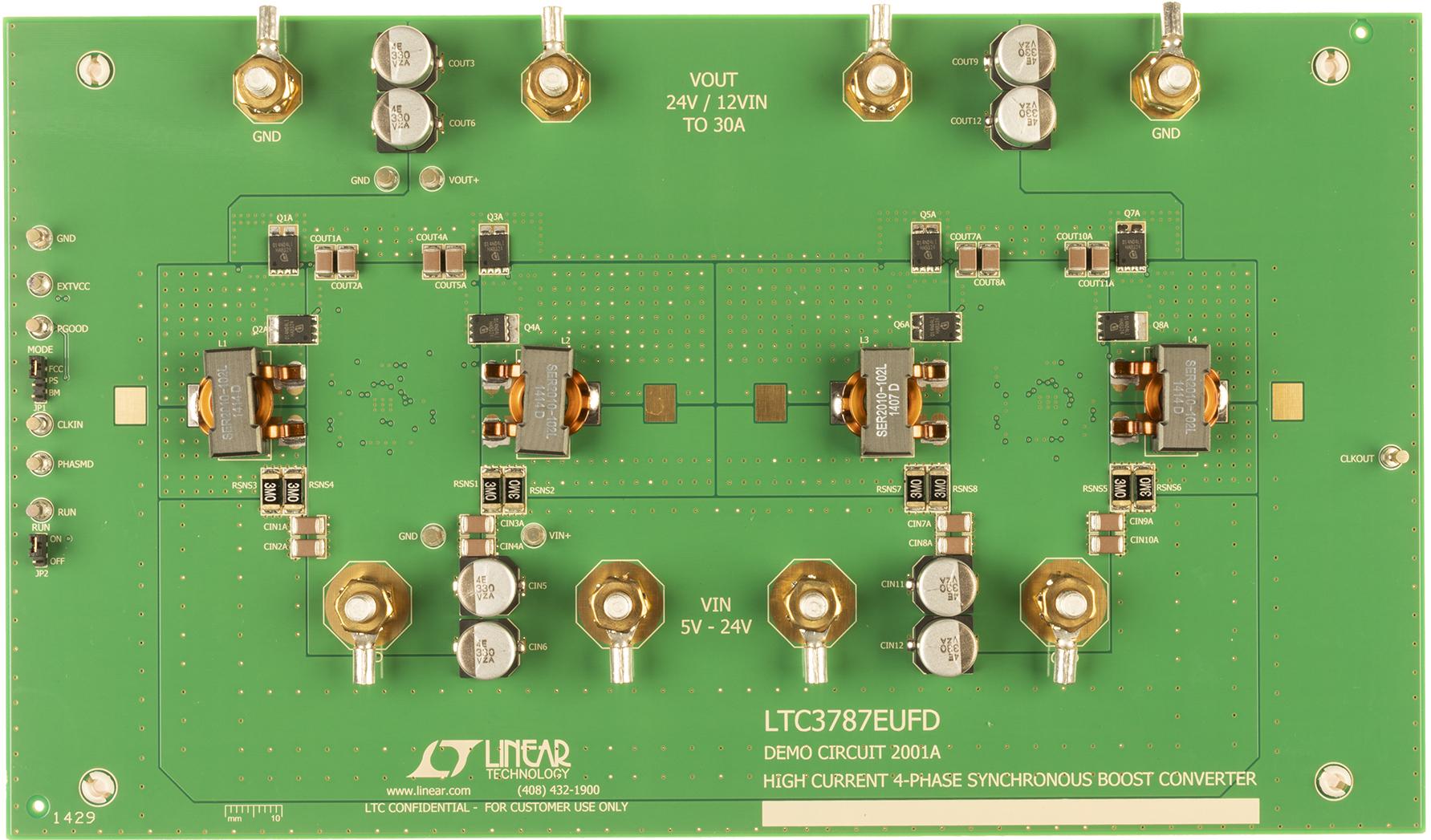

LTC3787EUFD Demo Board, LTC3787(x2) Paralleled Boost Controllers, 6V ≤ VIN ≤ 24V, VOUT = 24V @ Up to 30A

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8473.30.11.80

• Automotive

  No

• PPAP

  No

• Type

  Demonstration Circuit

• Supported Device Technology

  DC to DC Controller

• Number of Outputs

  1

• Output Voltage Range (VDC)

  23.52 to 24.48

• Output Current (mA)

  25000 to 30000

• Input Voltage Range

  6VDC to 24VDC

• Typical Switching Frequency (kHz)

  350

• Efficiency (%)

  98.2

• Supported Device

  LTC3787EUFD
