Power Management Development Boards and Kits

DC1724A

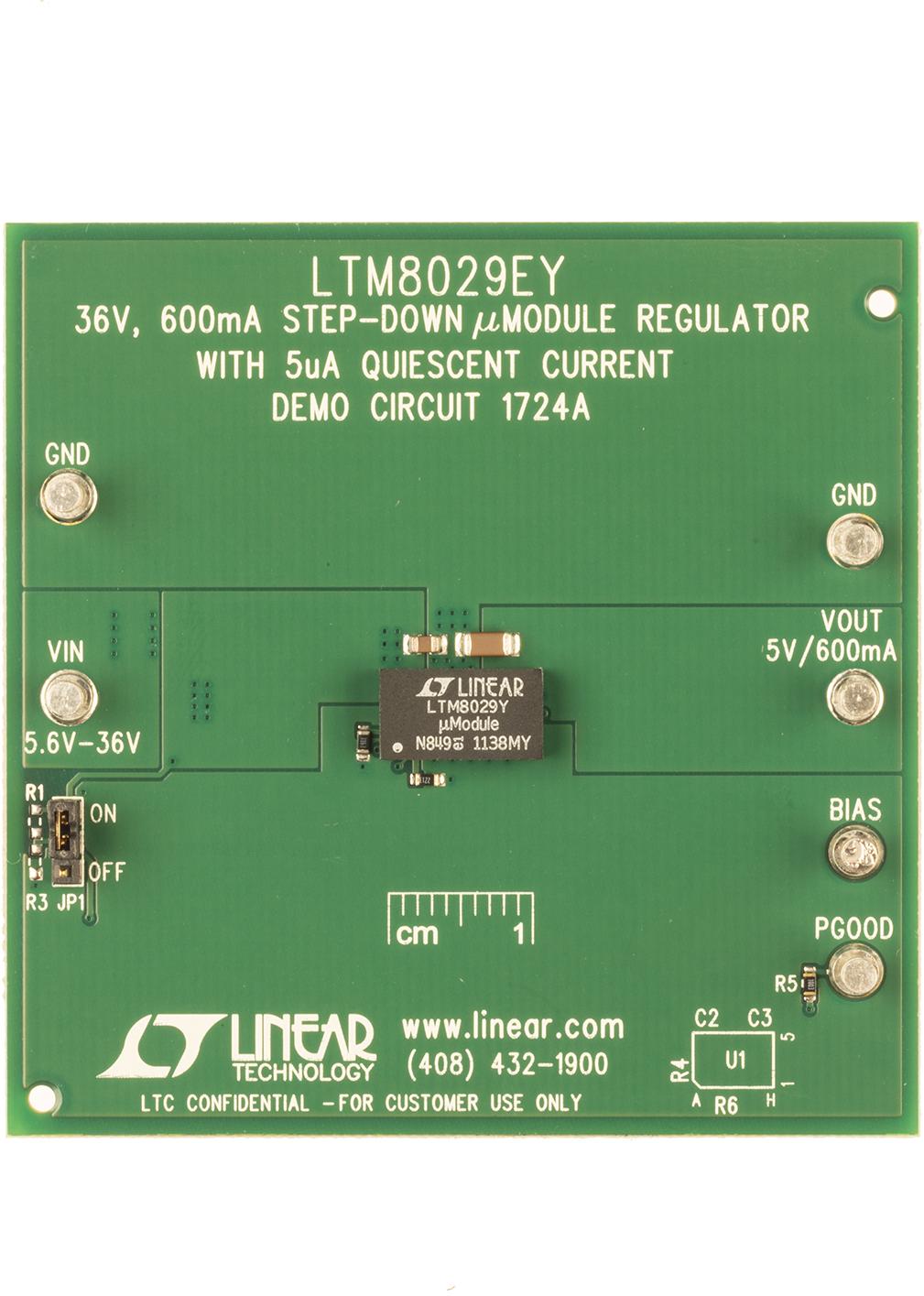

LTM8029 Demo Board, uModule Regulator, 5.6V ≤ VIN ≤ 36V, VOUT = 5V @ 600mA

Analog Devices

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  DC1724A

• Automotive

  No

• PPAP

  No

• Type

  Demonstration Circuit

• Supported Device Technology

  DC to DC Converter and Switching Regulator Chip

• Number of Outputs

  1

• Output Voltage Range (VDC)

  5(Typ)

• Output Current (mA)

  600

• Input Voltage Range

  5.6VDC to 36VDC

• Typical Switching Frequency (kHz)

  600

• Efficiency (%)

  85

• Supported Device

  LTM8029
