Switch Tactile

CB315FP

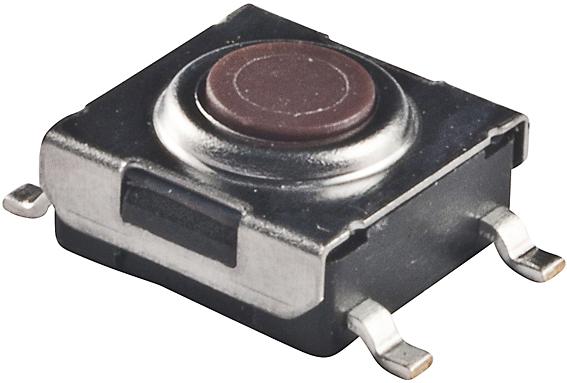

Switch Tactile OFF (ON) SPST Round Button Gull Wing 0.05A 24VDC 100000Cycles 1.57N SMD T/R

NKK Switches

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  COMPONENTS

• Automotive

  No

• PPAP

  No

• Pole Throw Configuration

  SPST

• Actuator Style

  Round Button

• Switch Function

  Momentary

• Switch Configuration

  OFF (ON)

• Maximum Current Rating (A)

  0.05@24VDC

• Dielectric Strength

  250VAC

• Minimum Insulation Resistance (MOhm)

  100

• Maximum Contact Resistance (mOhm)

  100

• Electrical Life (Cycles)

  100000

• Mechanical Life (Cycles)

  100000

• Operating Force (N)

  1.57

• Actuator Length (mm)

  0.65

• Number of Rows

  2

• Row Spacing (mm)

  8.9

• Mounting

  Surface Mount

• Termination Style

  Gull Wing

• Number of Terminals

  4

• Terminal Length (mm)

  1.4

• Terminal Pitch (mm)

  4

• Base Material

  Polyphthalamide

• Body Orientation

  Straight

• Minimum Operating Temperature (°C)

  -25

• Maximum Operating Temperature (°C)

  70

• Packaging

  Tape and Reel

• Body Length (mm)

  6.2

• Body Depth (mm)

  6.2

• Body Height (mm)

  2.45

• Product Length (mm)

  6.2

• Product Depth (mm)

  9

• Product Height (mm)

  3.1

• Contact Plating

  Silver

• Contact Material

  Beryllium Copper Alloy

• Base/Housing Material

  Polyphthalamide/N/A
