Connector RF

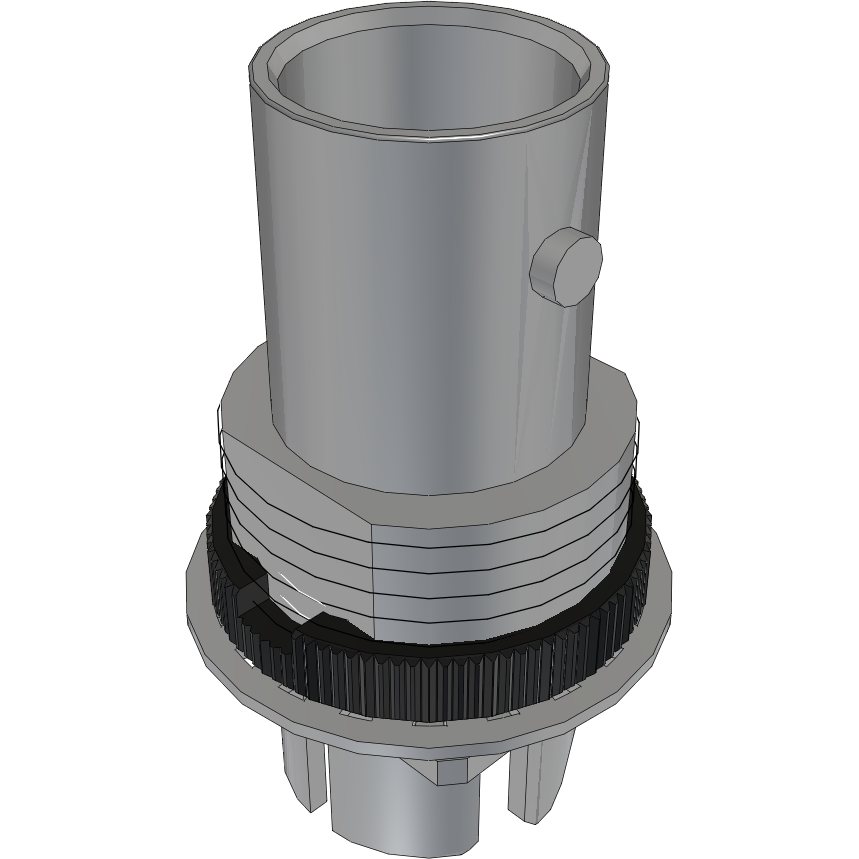

BNC7T-J-P-HN-ST-EM1D

Conn BNC 0Hz to 12GHz 75Ohm Solder ST Edge Mount RCP Gold Over Nickel Bulk

Samtec

Product Technical Specifications

• EU RoHS

  Compliant with Exemption

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  EA

• SVHC

  Yes

• SVHC Exceeds Threshold

  Yes

• Automotive

  No

• PPAP

  No

• Type

  BNC

• Gender

  RCP

• Termination Method

  Solder

• Body Orientation

  Straight

• Contact Gender

  SKT

• Contact Plating

  Gold Over Nickel

• Operating Frequency (Hz)

  0 to 12G

• Impedance (Ohm)

  75

• Insulation Resistance (MOhm)

  1000

• Mating System

  Bayonet Lock

• Mating Cycle (Cycles)

  500

• Polarity

  Standard

• Minimum Operating Temperature (°C)

  -65

• Maximum Operating Temperature (°C)

  125

• Packaging

  Bulk

• Product Diameter (mm)

  16

• Product Length (mm)

  16

• Product Depth (mm)

  25.48

• Mounting

  Edge Mount
