Rectifiers

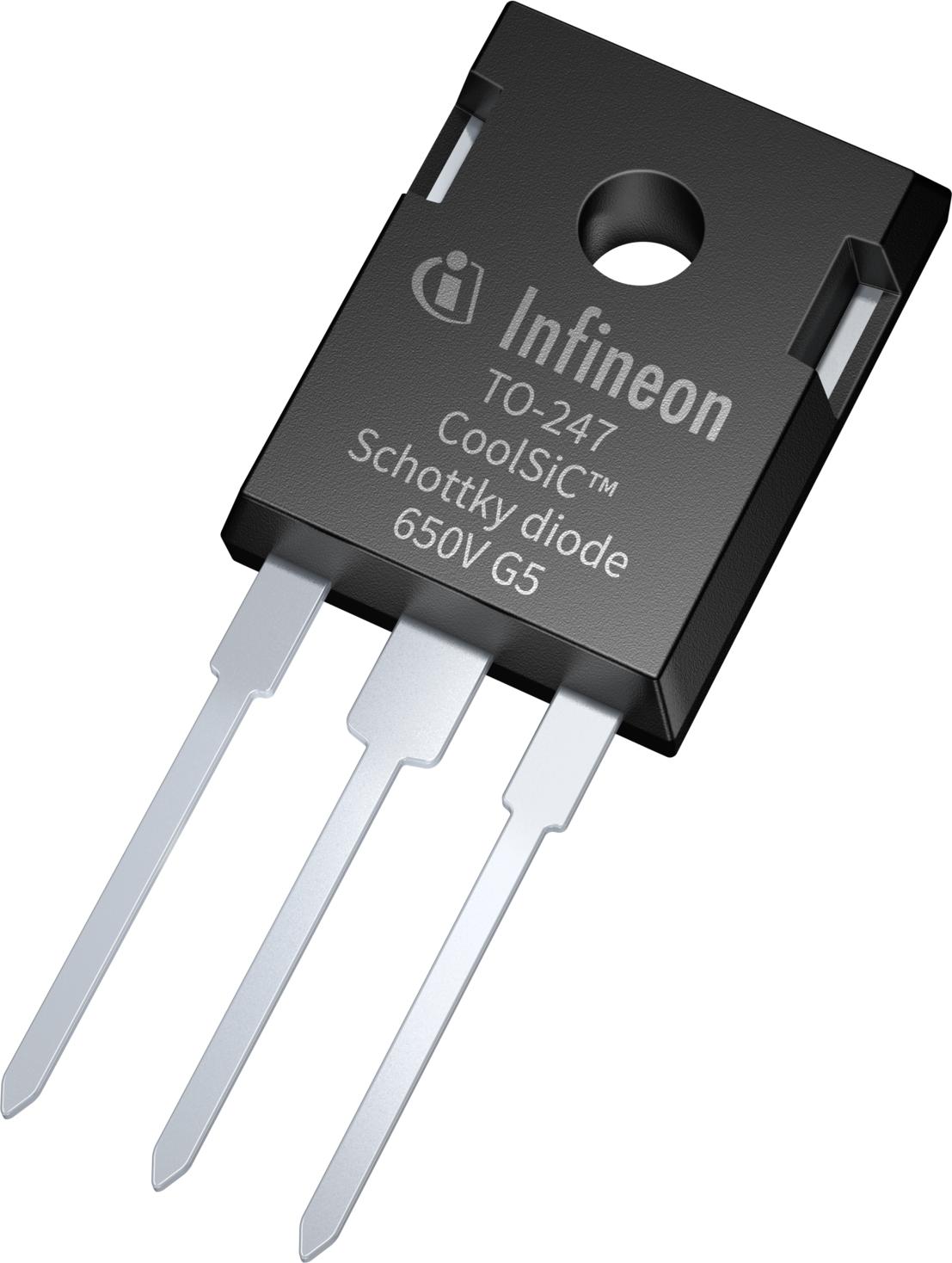

AIDW10S65C5XKSA1

Diode Schottky SiC 650V 10A 3-Pin(3+Tab) TO-247 Tube Automotive AEC-Q101

Infineon Technologies AG

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Obsolete

• HTS

  AIDW10S65C5XKSA1

• Automotive

  Yes

• PPAP

  Unknown

• Type

  Schottky Diode

• Material

  SiC

• Maximum DC Reverse Voltage (V)

  650

• Configuration

  Single

• Peak Reverse Repetitive Voltage (V)

  650

• Maximum Continuous Forward Current (A)

  10

• Peak Non-Repetitive Forward Surge Current (A)

  58

• Maximum Forward Voltage (V)

  1.7

• Peak Reverse Current (uA)

  60

• Maximum Diode Capacitance (pF)

  303(Typ)

• Maximum Power Dissipation (mW)

  65000

• Minimum Operating Temperature (°C)

  -40

• Maximum Operating Temperature (°C)

  175

• Packaging

  Tube

• Supplier Temperature Grade

  Automotive

• Mounting

  Through Hole

• Package Height

  21 mm

• Package Width

  5 mm

• Package Length

  15.8 mm

• PCB changed

  3

• Tab

  Tab

• Standard Package Name

  TO

• Supplier Package

  TO-247

• Pin Count

  3

• Lead Shape

  Through Hole
