Blowers and Fans

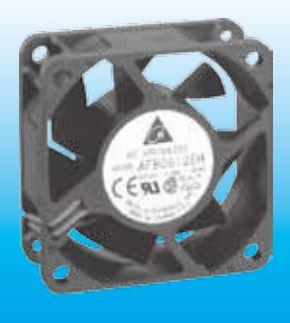

AFB0612EH-AB

DC Fan Axial Ball Bearing 12V 4V to 13.8V 38.35CFM 46.5dB 60 X 60 X 25.4mm

Delta Electronics

Product Technical Specifications

• EU RoHS

  Compliant

• ECCN (US)

  EAR99

• Part Status

  Active

• HTS

  8414.59.65.90

• Automotive

  No

• PPAP

  No

• Type

  Axial

• Category

  DC Fan

• Maximum Voltage Rating (V)

  12

• Input Voltage Range (V)

  4 to 13.8

• Line Current (A)

  0.38

• Power Rating (W)

  4.56

• Typical Speed (r/min)

  6800

• Maximum Airflow (CFM)

  38.35

• Maximum Pressure

  0.544inH2O

• Noise Level (dB)

  46.5

• Bearings

  Ball

• Shape

  Square

• Size (Metric) (mm)

  60 X 60 X 25.4

• Mounting

  Flange Mount

• Minimum Operating Temperature (°C)

  -10

• Maximum Operating Temperature (°C)

  70

• Product Length (Metric) (mm)

  60

• Product Depth (Metric) (mm)

  60

• Product Height (Metric) (mm)

  25.4
