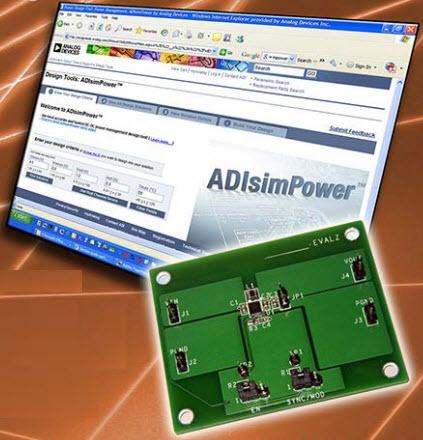

ADP7104CPZ-REDYKIT

The ADP7104 is a CMOS, low dropout linear regulator that operates from 3.3 V to 20 V and provides up to 500 mA of output current.

This high input voltage LDO is ideal for regulation of high performance analog and mixed signal circuits operating from 19 V to 1.22 V rails. Using an advanced proprietary architecture, it provides high power supply rejection, low noise, and achieves excellent line and load transient response with just a small 1 μF ceramic output capacitor.

The ADP7104 is available in seven fixed output voltage options and an adjustable version, which allows output voltages that range from 1.22 V to VIN − VDO via an external feedback divider.

The ADP7104 output noise voltage is 15 μV rms and is independent of the output voltage. A digital power-good output allows power system monitors to check the health of the output voltage. A user programmable precision undervoltage lockout function facilitates sequencing of multiple power supplies.

The ADP7104 is available in 8-lead, 3 mm × 3 mm LFCSP and 8-lead SOIC packages. The LFCSP offers a very compact solution and also provides excellent thermal performance for applications requiring up to 500 mA of output current in a small, low-profile footprint.

Key Features and Benefits

• •  Input voltage range: 3.3 V to 20 V
• •  Maximum output current: 500 mA
• •  Low Noise: 15 μV rms for fixed output versions
• •  PSRR Performance of 60 dB at 10 kHz, VOUT = 3.3 V
• •  Reverse current protection
• •  Low dropout voltage: 350 mV at 500 mA
• •  Initial accuracy: ±0.8%
• •  Accuracy over line, load, and temperature
• •  −2% to +1%, TJ = −40°C to +125°C
• •  −1.25% to +1%, TJ = 0°C to +85°C

Applications

• •  Regulation to noise sensitive applications: ADC, DAC circuits, precision amplifiers, high frequency oscillators, clocks, and PLLs
• •  Communications and infrastructure
• •  Medical and healthcare
• •  Industrial and instrumentation
